SVS
SKU: SVS-PB-1000-PRO
In Stock
Reference Subwoofer Performance Hits an All-Time Low.
Room-shaking low-frequency output well below the threshold of audibility where bass can be felt as well as heard, with pinpoint control and accuracy that obliterates any subwoofer in its class and beyond. Never has this level of subwoofer performance been available anywhere near the price.
<strong>Sledge STA-325D Amplifier – Effortless power with sophisticated control</strong>
The Sledge STA-325D amplifier maximizes the full potential of the 12-inch driver with effortless power and precise control. The innovative design combines the efficiency of a Class D amplifier with the ability to move colossal amounts of current through the fully discrete MOSFETs for outstanding real-world subwoofer performance at all drive levels, in any room. Allows easy integration with any home theater or stereo speaker system.

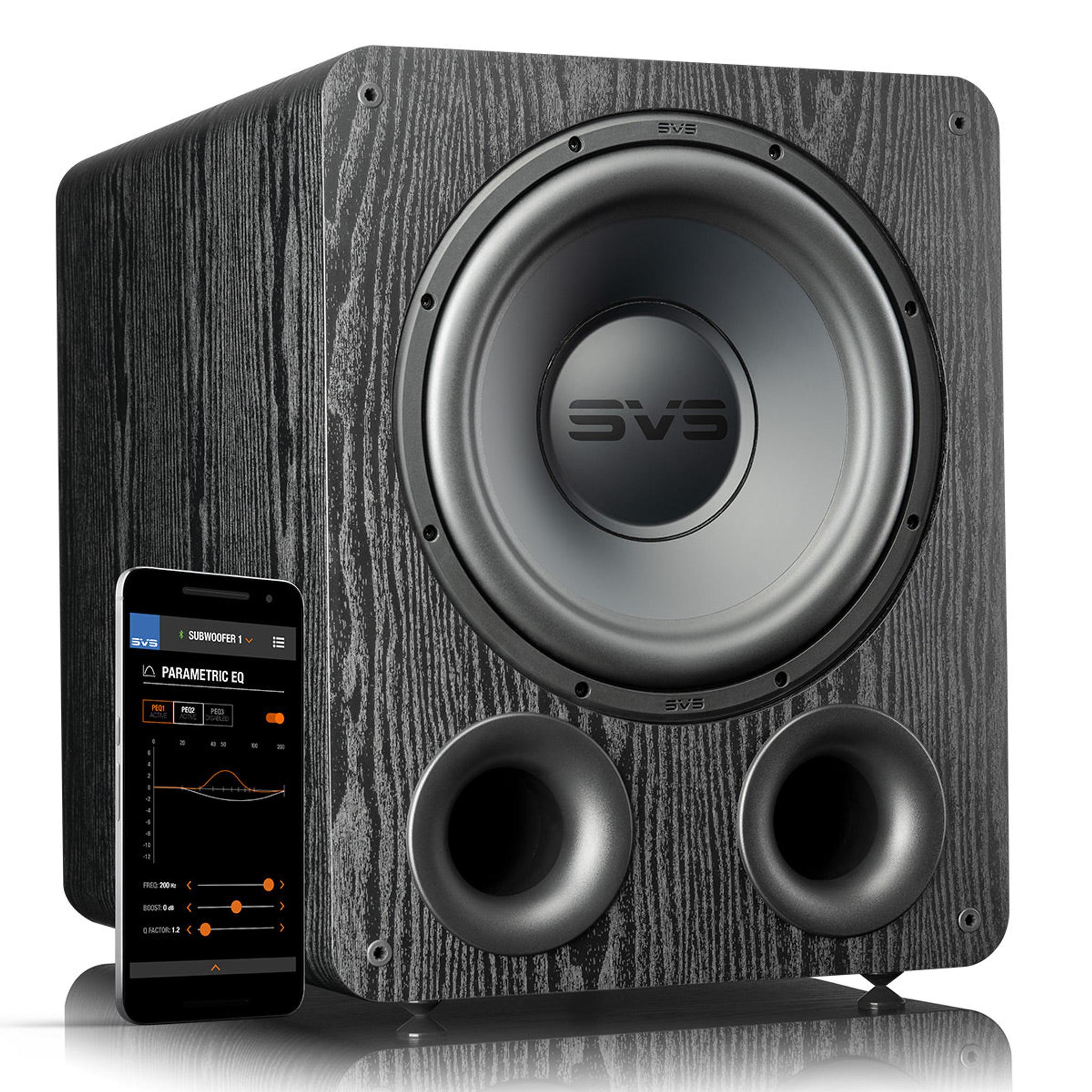

<strong>PB-1000 Pro Smartphone App – Easiest way ever to manage subwoofer DSP and control.</strong>
The most convenient way ever to control volume, access multiple DSP functions, and program custom presets for one-touch tuning optimized for music, movies, gaming, and more. Adjust crossover frequencies, dial-in the three-band parametric EQ, polarity, room gain, and more, all from your favorite seat.

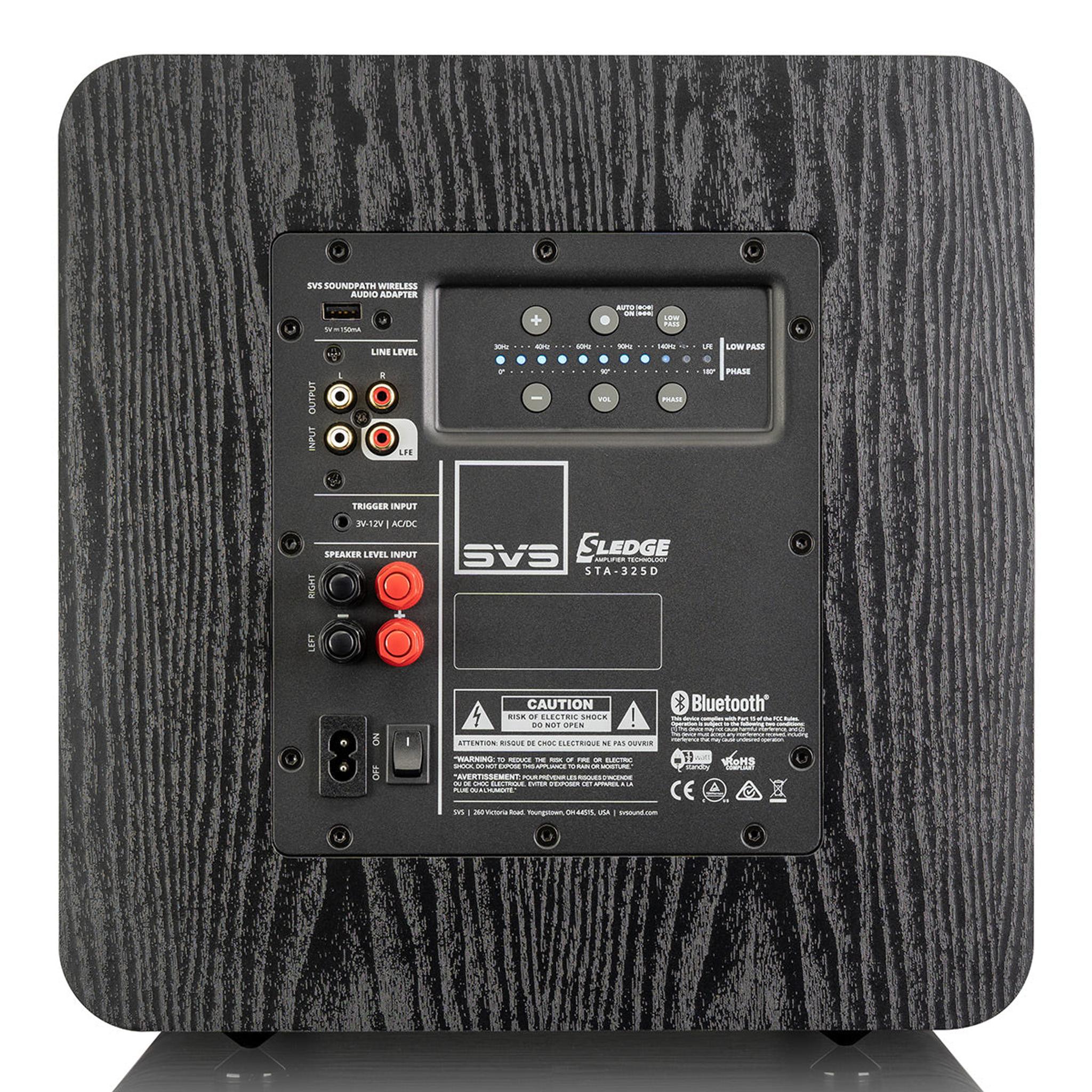

<strong>Rear Panel Intelligent Control Interface (ICI)</strong>
The rear-panel SVS Intelligent Control Interface (ICI) provides control options and connections for the subwoofer’s most critical functions.

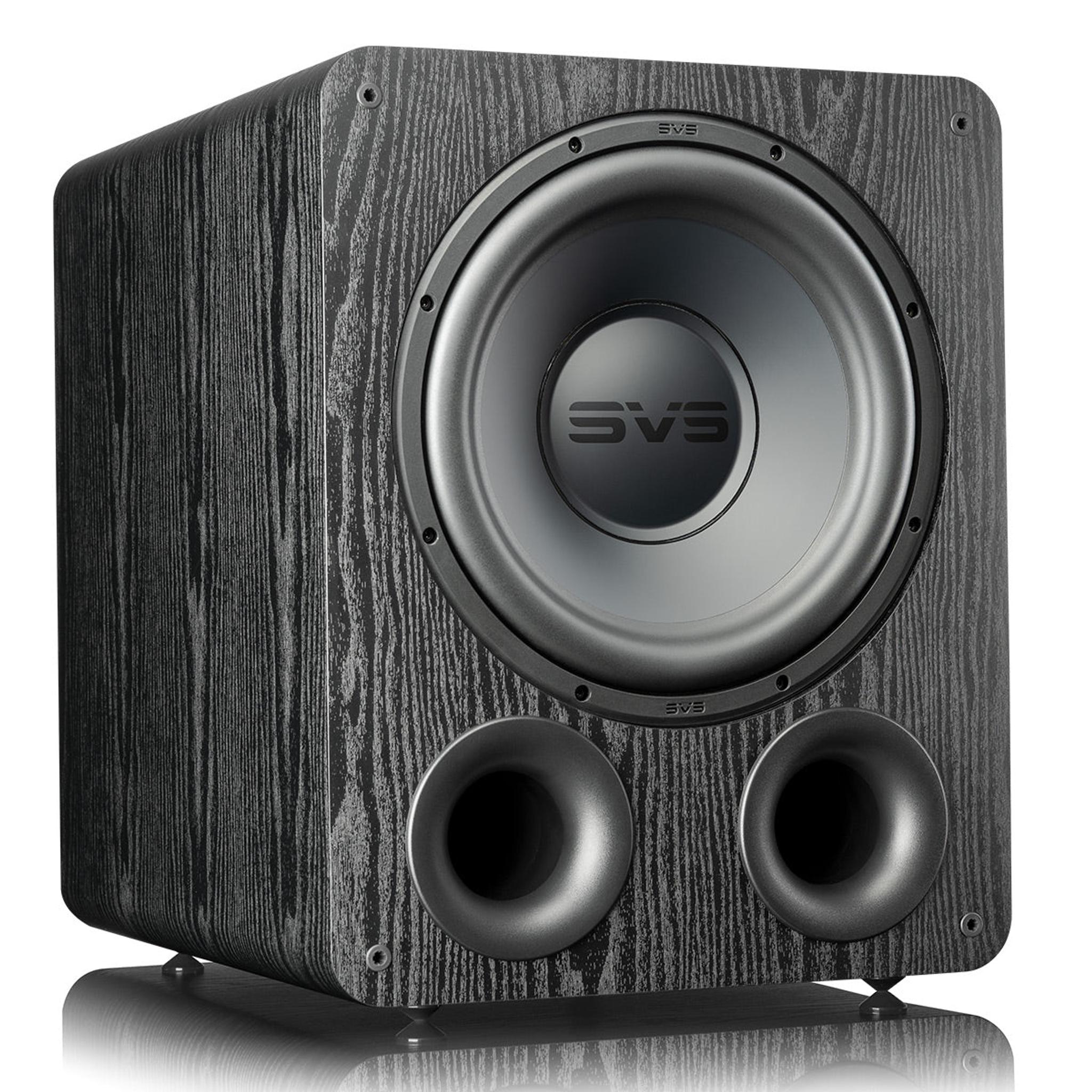

<strong>Acoustically Inert and Rigidly Braced Ported Cabinet Design</strong>
Classically handsome, the acoustically optimized ported cabinet features an extra-thick MDF front baffle and rigid internal bracing for a resonance-free environment. Serves as a blank canvas for uncompromised subwoofer performance.
Model
PB-1000PRO-BLACKASH
UPC
856677007879
| Specification | Value | Info |
|---|---|---|
| 17Hz to 260Hz Standard +/-3dB | Frequency Response: | |
| 19Hz to 260Hz Sealed +/-3dB | Frequency Response: | |
| In-Room Low Freq – 18Hz | Frequency Response: | |
| With Grille | 15" x 18.9" x 20" | Dimensions (W x H x D): |
| Without Grille | 15" x 18.9" x 19.2" | Dimensions (W x H x D): |
| Weight | 42.5lbs | Dimensions (W x H x D): |
| Protective non-resonant extra-thick ABS fabric mesh grill | Subwoofer Specs | |
| Iso-elastomer feet included | Subwoofer Specs | |
| Extra heavy-duty, high current power cord 6' | Subwoofer Specs | |
| Quick Start Guide | Subwoofer Specs | |
| Port Plugs (free upon request) |
| Subwoofer Specs |
| Unbalanced stereo input/output | Subwoofer Specs |
| Speaker Level Stereo Input | Subwoofer Specs |
| Auto/On and Trigger options through app, 3-12V AC/DC trigger | Subwoofer Specs |
| RoHS compliant, lead-free construction, world-wide safety certifications | Subwoofer Specs |
| Green 0.5-watt low standby power consumption | Subwoofer Specs |
| All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration. | Driver Specs |
| 26lb (4.2kg) pound Woofer with 6.91lb (3.14kg) pounds motor | Driver Specs |
| 1mm Xmax, 26.8mm Xmech precision aligned excursion | Driver Specs |
| 5" diameter Voice Coil with high current 4-layer high-purity copper wire windings | Driver Specs |
| Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion | Driver Specs |
| Two-piece high grade oversized Y35 Ferrite magnet motor | Driver Specs |
| High-Temperature 3003-H18 aluminum former/bobbing | Driver Specs |
| 6" composite cotton-poly extreme excursion linear spider | Driver Specs |
| Dual 24-strand copper-alloy high-temperature leads | Driver Specs |
| Proprietary injection molded gasket and NBR extreme-excursion surround | Driver Specs |
| Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response | Driver Specs |
| Top plate assembly with low carbon 1010 steel for optimal magnetics | Driver Specs |
| Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics | Driver Specs |
| 12" premium powder-coated basket with FEA optimized analysis for maximum rigidity, tensile strength, and energy transference | Driver Specs |
| Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed | Driver Specs |
| Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at full range of excursion | Driver Specs |
| 325 watts RMS, 820+ watts peak power output Class D design | Amplifier Specs |
| 50Mhz Analog Devices Audio DSP, high-resolution double precision 56bit filtering | Amplifier Specs |
| Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line-level input. | Amplifier Specs |
| High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency. | Amplifier Specs |
| Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s | Amplifier Specs |
| 3 complete User presets – name-able, customizable | Amplifier Specs |
| iOS (iphone5 or newer) or Android (4.42 or newer) | Amplifier Specs |
| 3 PEQ’s per preset | Amplifier Specs |
| Adjustable low pass, phase, polarity, 3 PEQs, room gain compensation, port tuning control for best alignment with speakers | Amplifier Specs |
| Standard and sealed port tuning modes | Amplifier Specs |
