iFi Audio ZEN Air CAN High-Power Analogue Headphone Amplifier
$99.00
Unknown Brand
SKU: MCINTOSH-MHA200-2-CHANNEL
In Stock
Feature
Vacuum Tube Amplification
Feature
Unity Coupled Circuit Output Transformers
Feature
Versatile Headphone Connectivity
Feature
Compact and Elegant Design
Feature
Balanced and Unbalanced Analog Inputs
Feature
Premium Build Quality and Performance
Compact Design with Powerful Performance

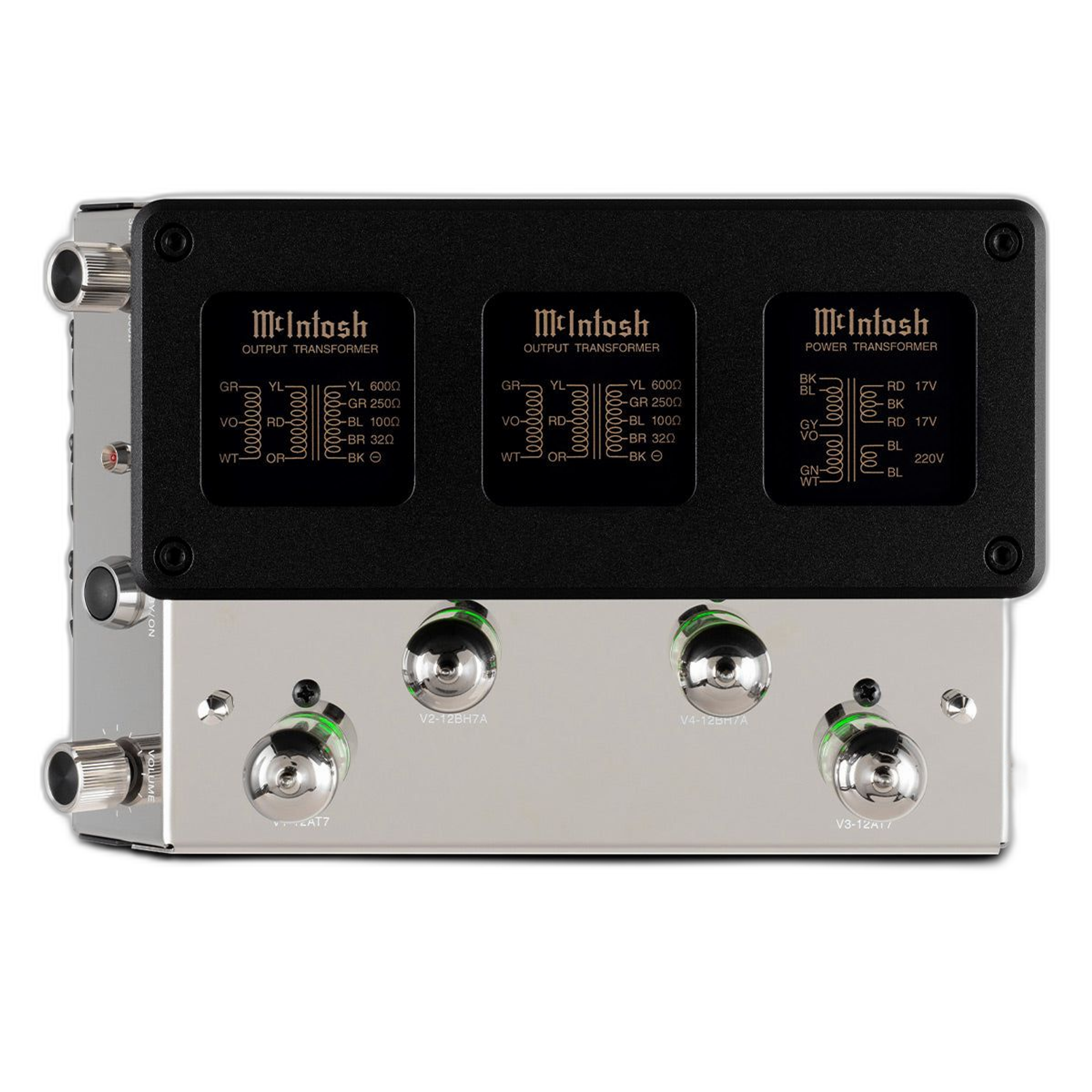

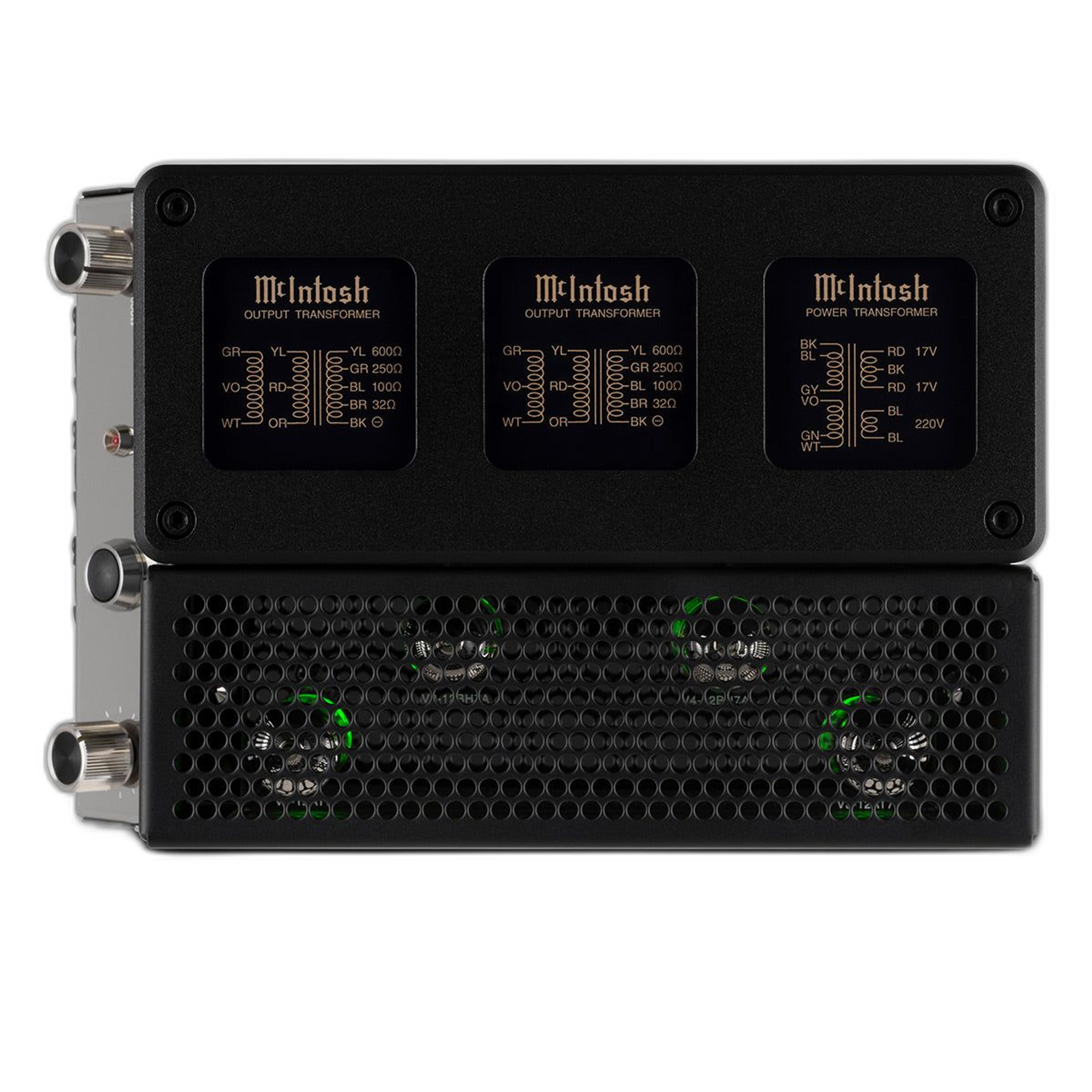

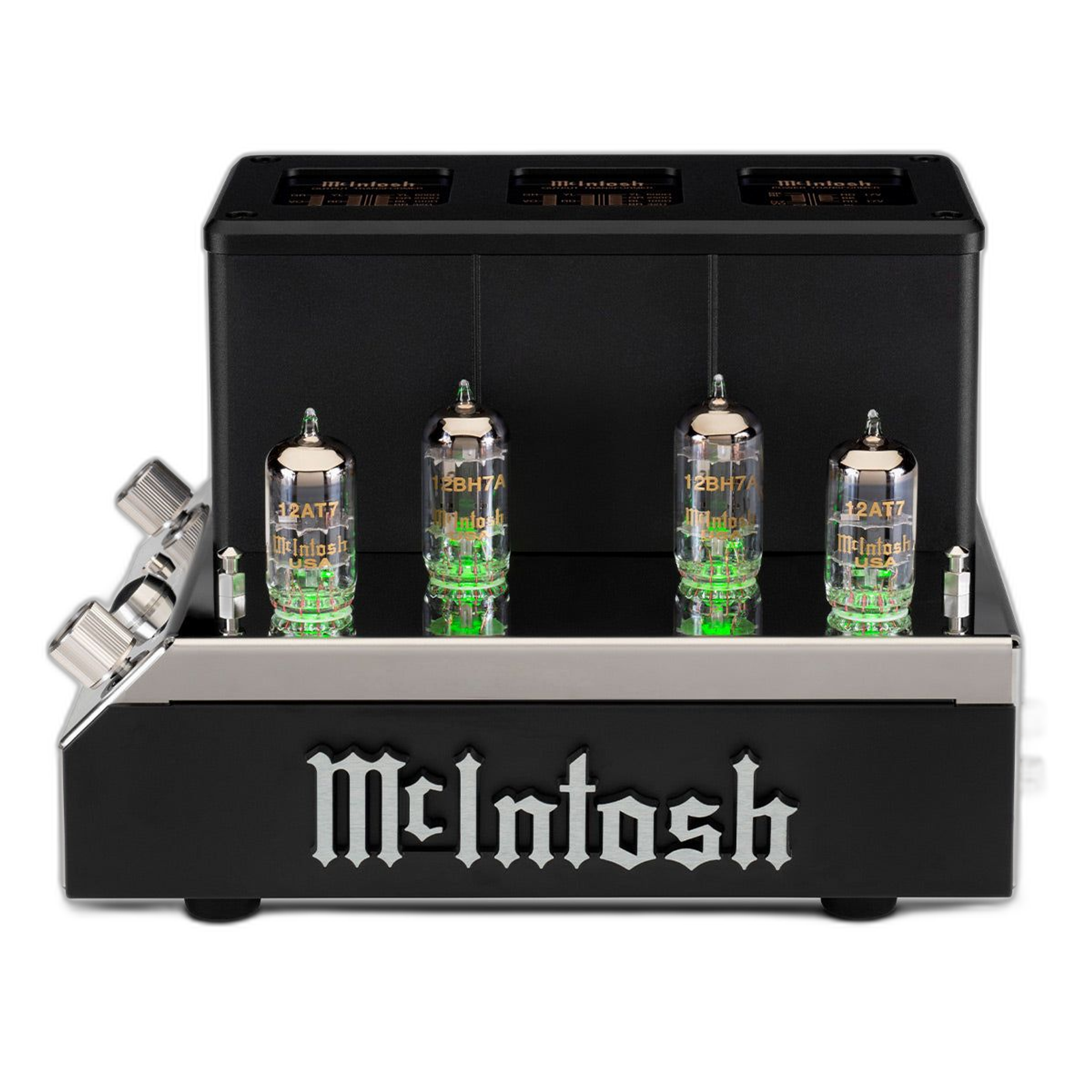

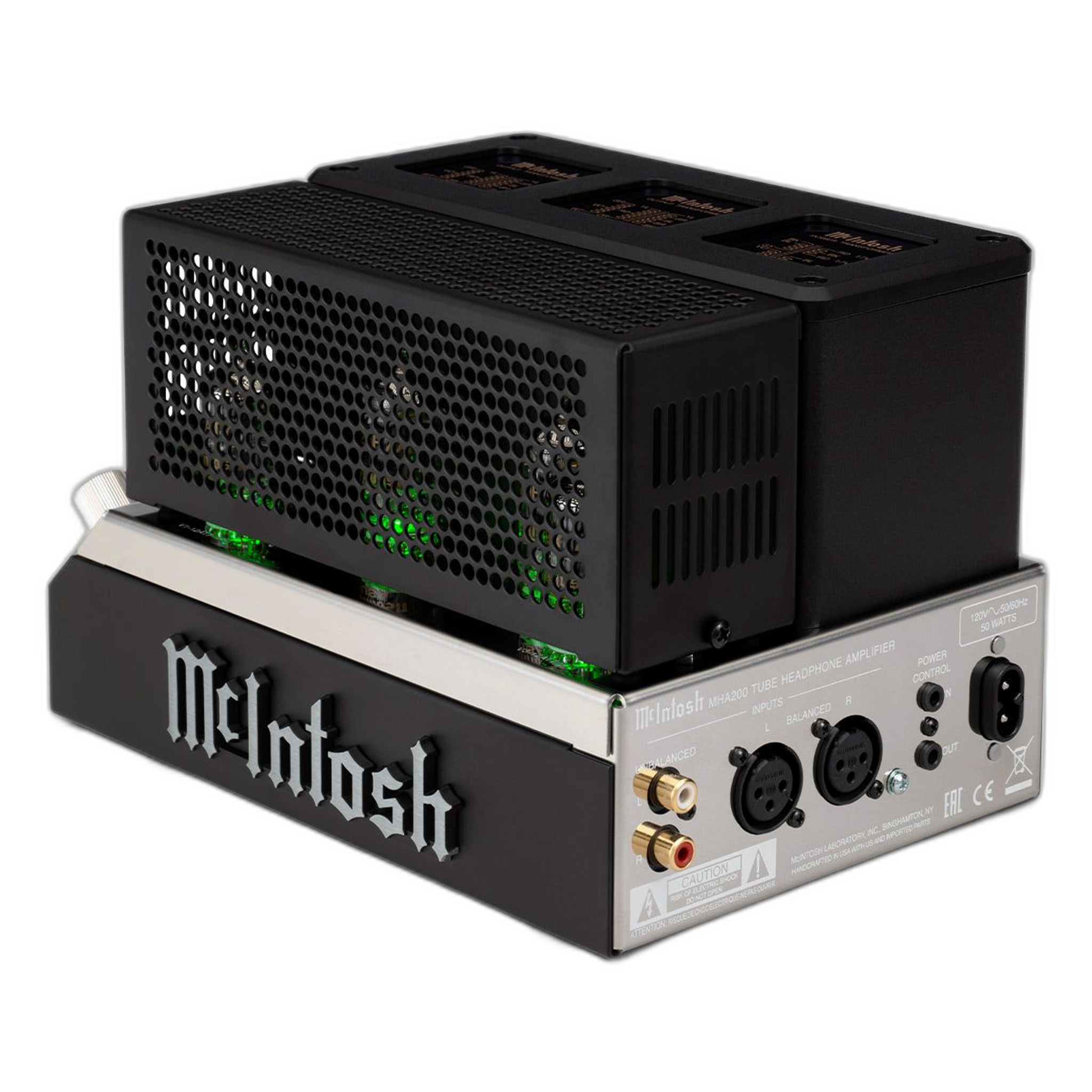

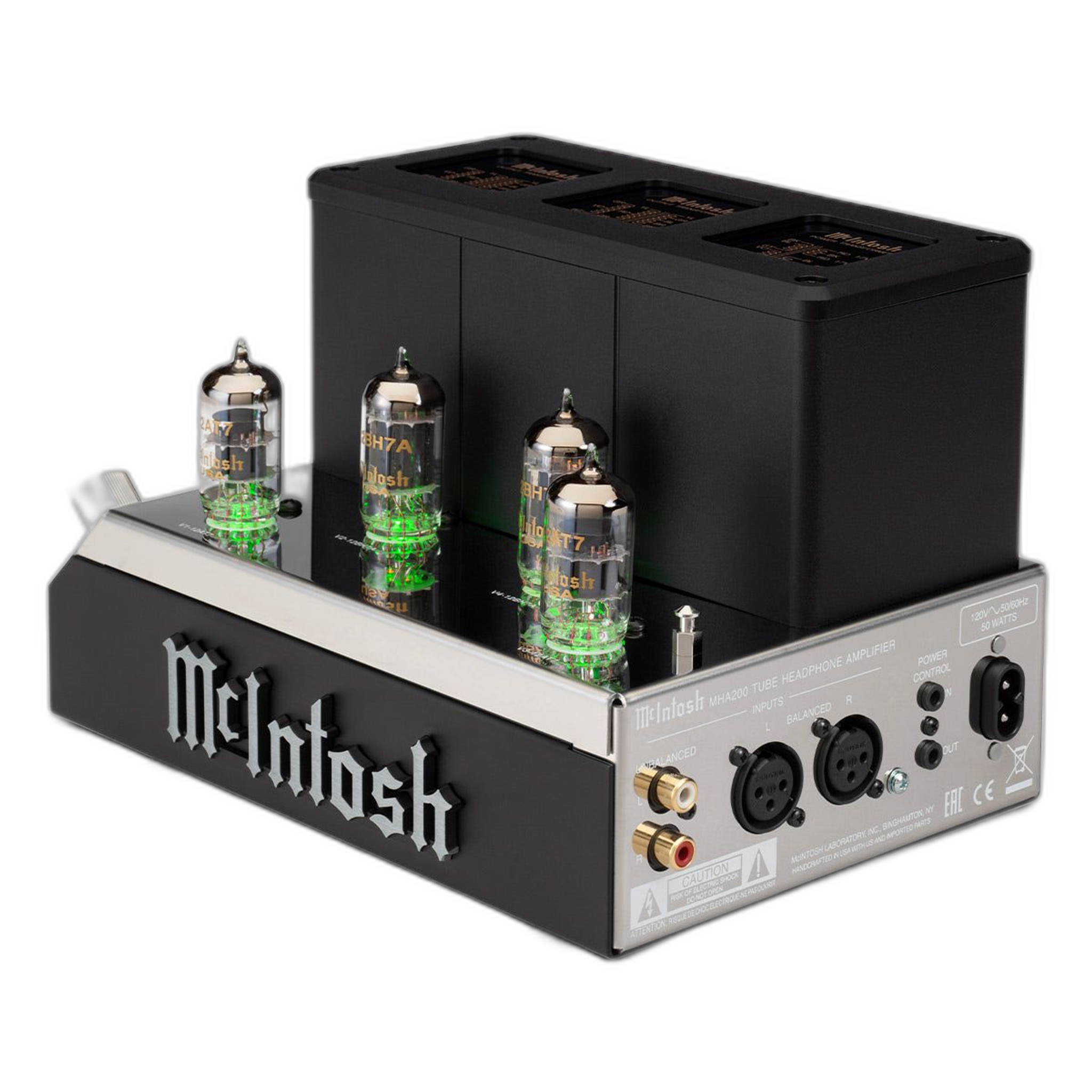

Despite its small footprint of just 6-1/8" (15.6 cm) by 9-1/8" (23.2 cm), the MHA200 delivers robust audio performance. It utilizes a pair of 12AT7 and 12BH7A dual triode vacuum tubes to amplify incoming signals and drive outputs with minimal distortion. This design incorporates McIntosh's Unity Coupled Circuit output transformers, a technology foundational to the brand since 1949, ensuring pristine audio delivery.
Versatile Connectivity Options

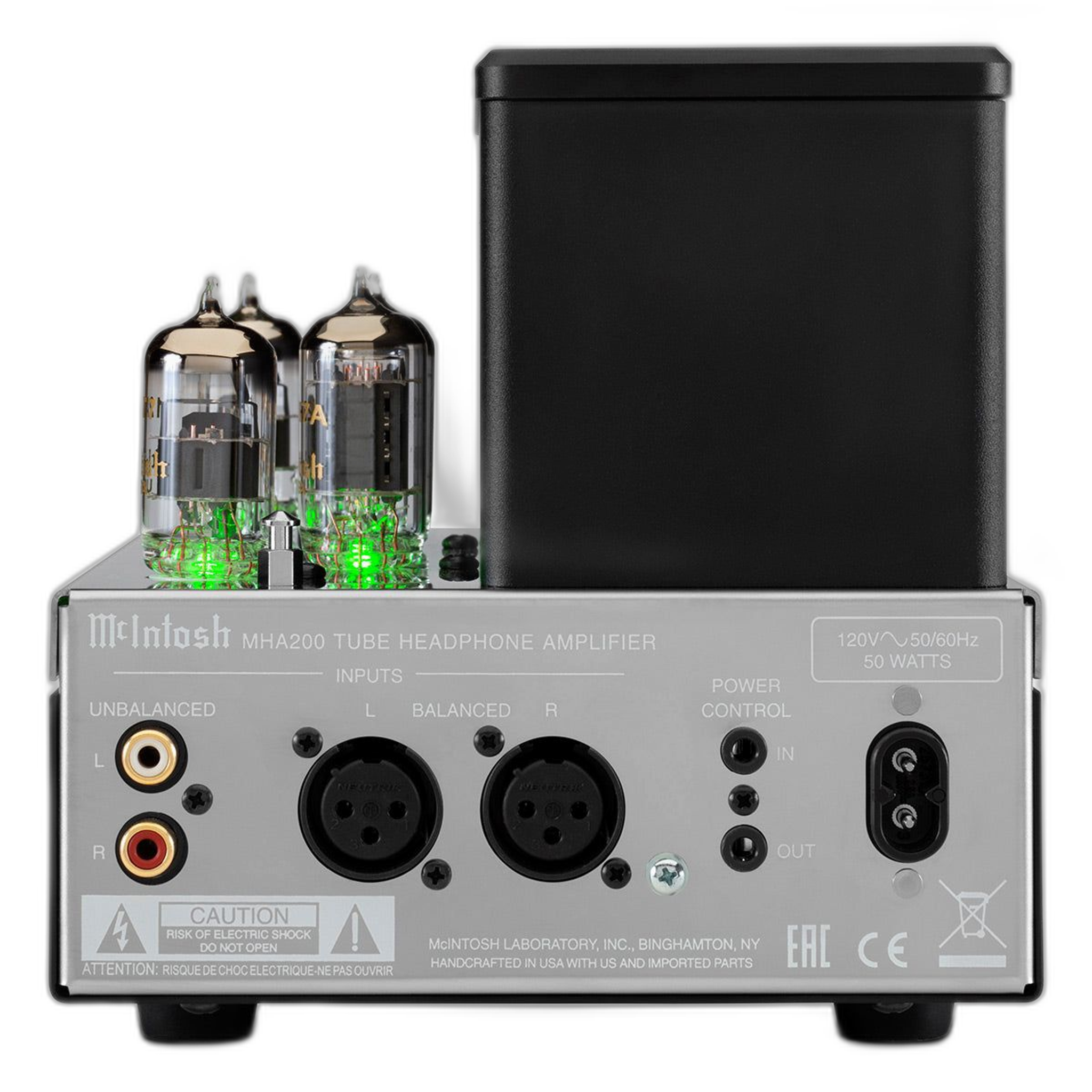

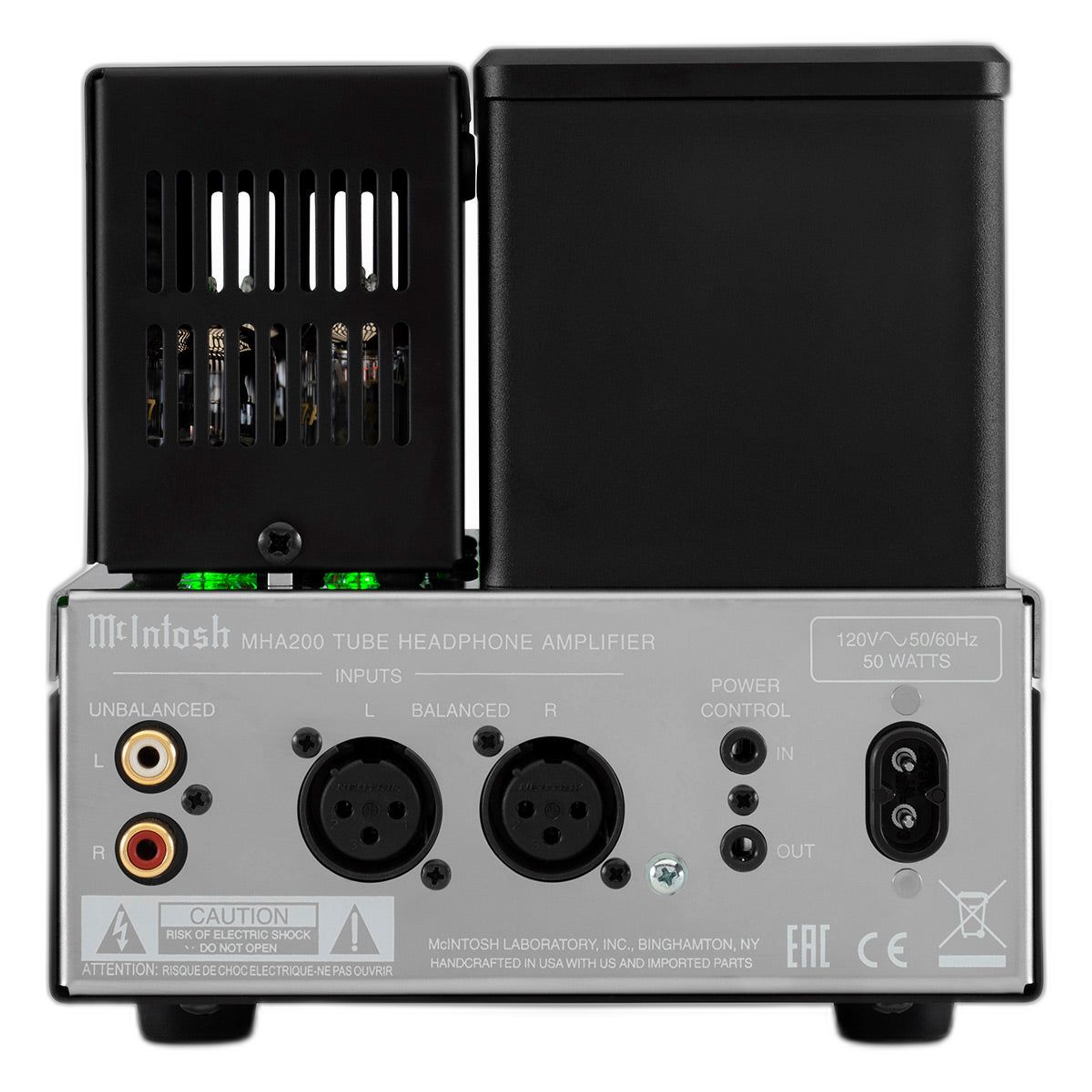

The MHA200 offers multiple headphone connection options to accommodate various preferences. For integrating with your home audio system, it includes both balanced and unbalanced analog inputs, enhancing its versatility.
Acclaimed Audio Quality
The MHA200 has received praise for its lush and detailed sound reproduction. Reviewers highlight its smooth yet dynamic performance, making it a standout choice among headphone amplifiers in its class.
Ideal for Discerning Listeners
Designed for those who demand the best from their headphones, the MHA200 combines McIntosh's renowned vacuum tube amplification with modern connectivity. Its compact size allows for convenient placement near your listening area, ensuring an extraordinary personal audio experience.
Model
MHA200
UPC
842548110328
| Specification | Value | Info |
|---|---|---|
| Headphone Power Output | 500mW | Headphone Output Specifications |
| 32-100 Ohms | Headphone Output Specifications | |
| 100-250 Ohms | Headphone Output Specifications | |
| 250-600 Ohms | Headphone Output Specifications | |
| 600-1,000 Ohms | Headphone Output Specifications | |
| Power Output per Channel | N/A | Electronic Specifications |
| Speaker Impedance | N/A | Electronic Specifications |
| Rated Power Band | 20Hz to 20kHz | Electronic Specifications |
| Total Harmonic Distortion | 0.5% | Electronic Specifications |
| 0.04% Typical | Electronic Specifications | |
| 0.4% Maximum |
| Electronic Specifications |
| 12dB at 32 Ohms | Voltage Gain |
| 17dB at 100 Ohms | Voltage Gain |
| 21dB at 250 Ohms | Voltage Gain |
| 25dB at 600 Ohms | Voltage Gain |

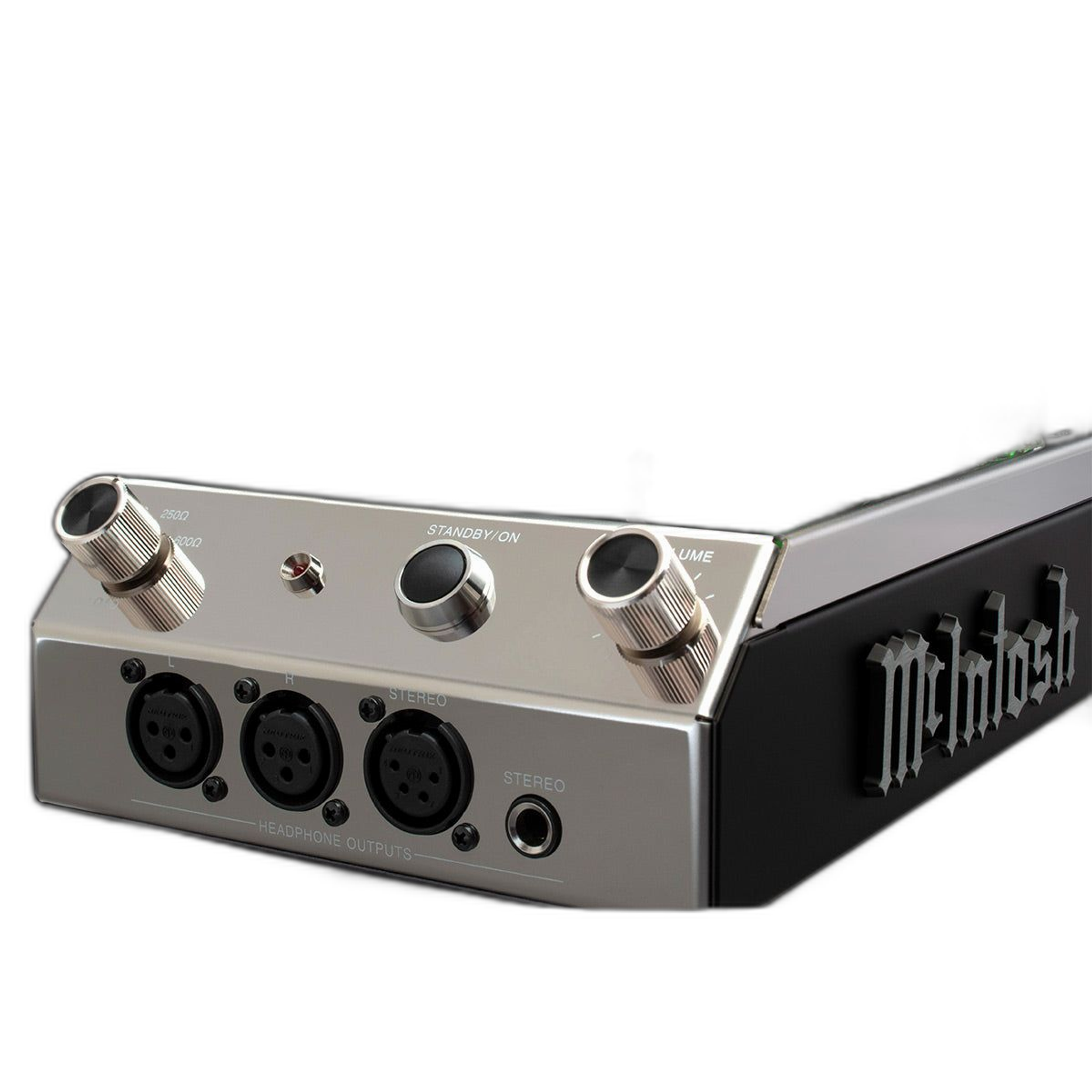

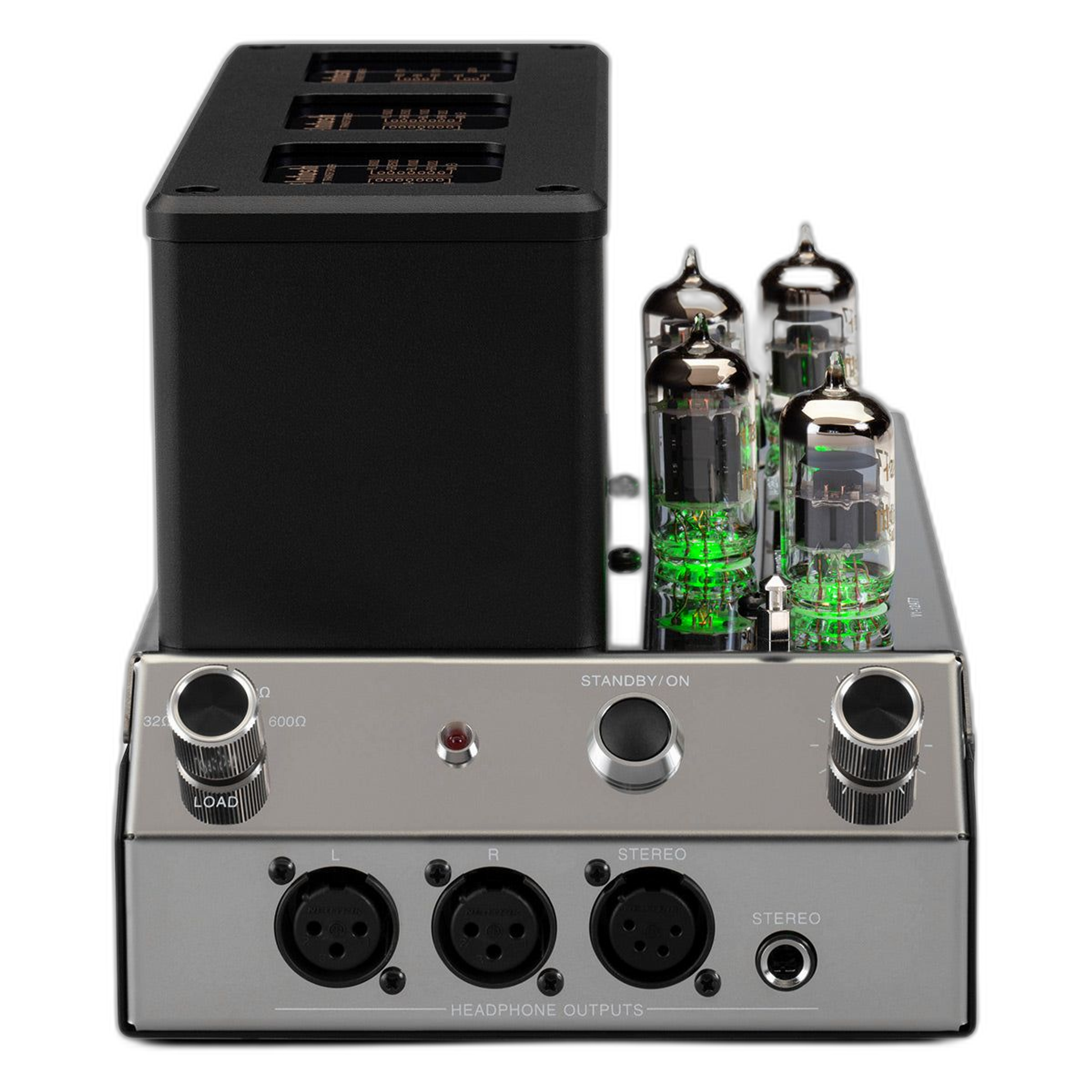

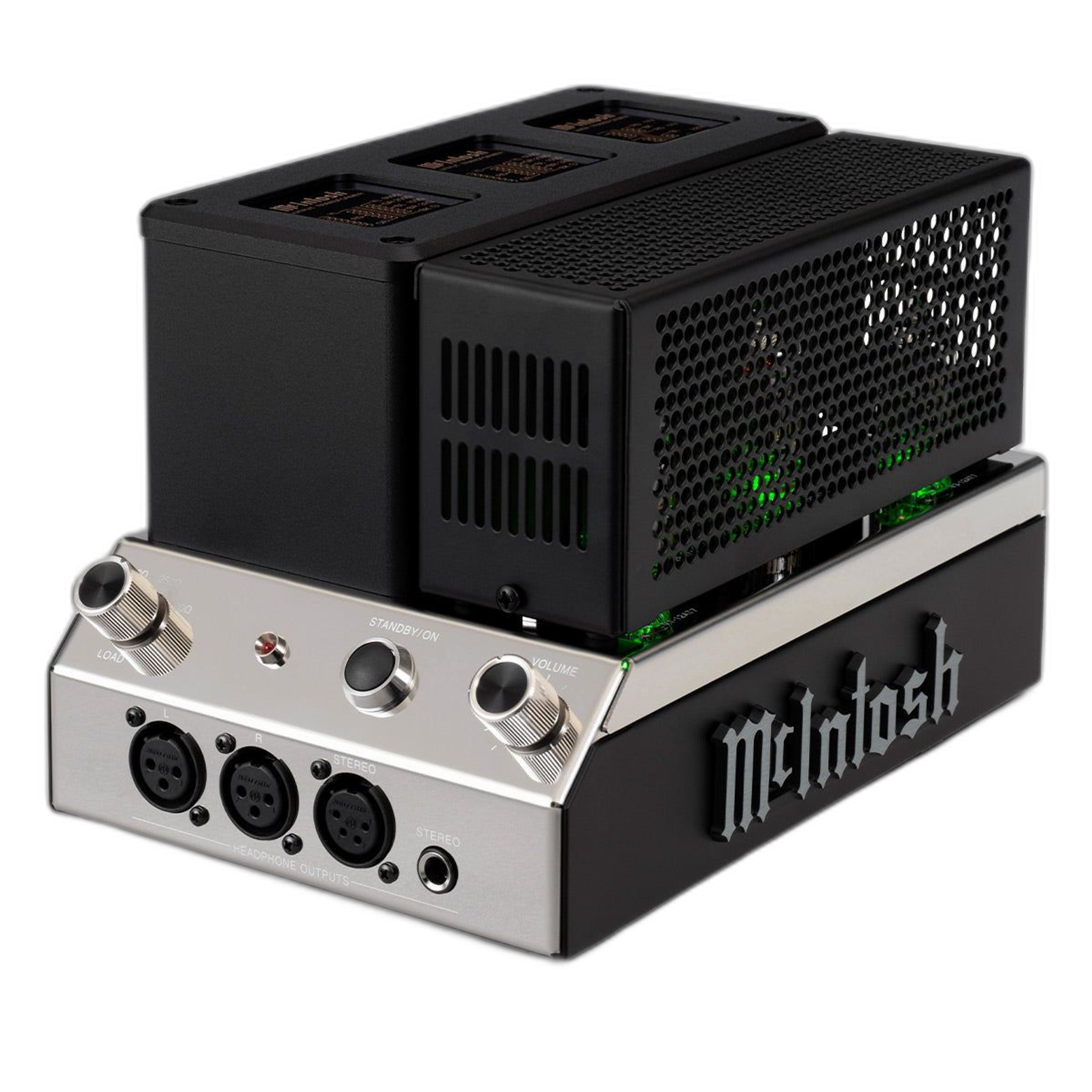

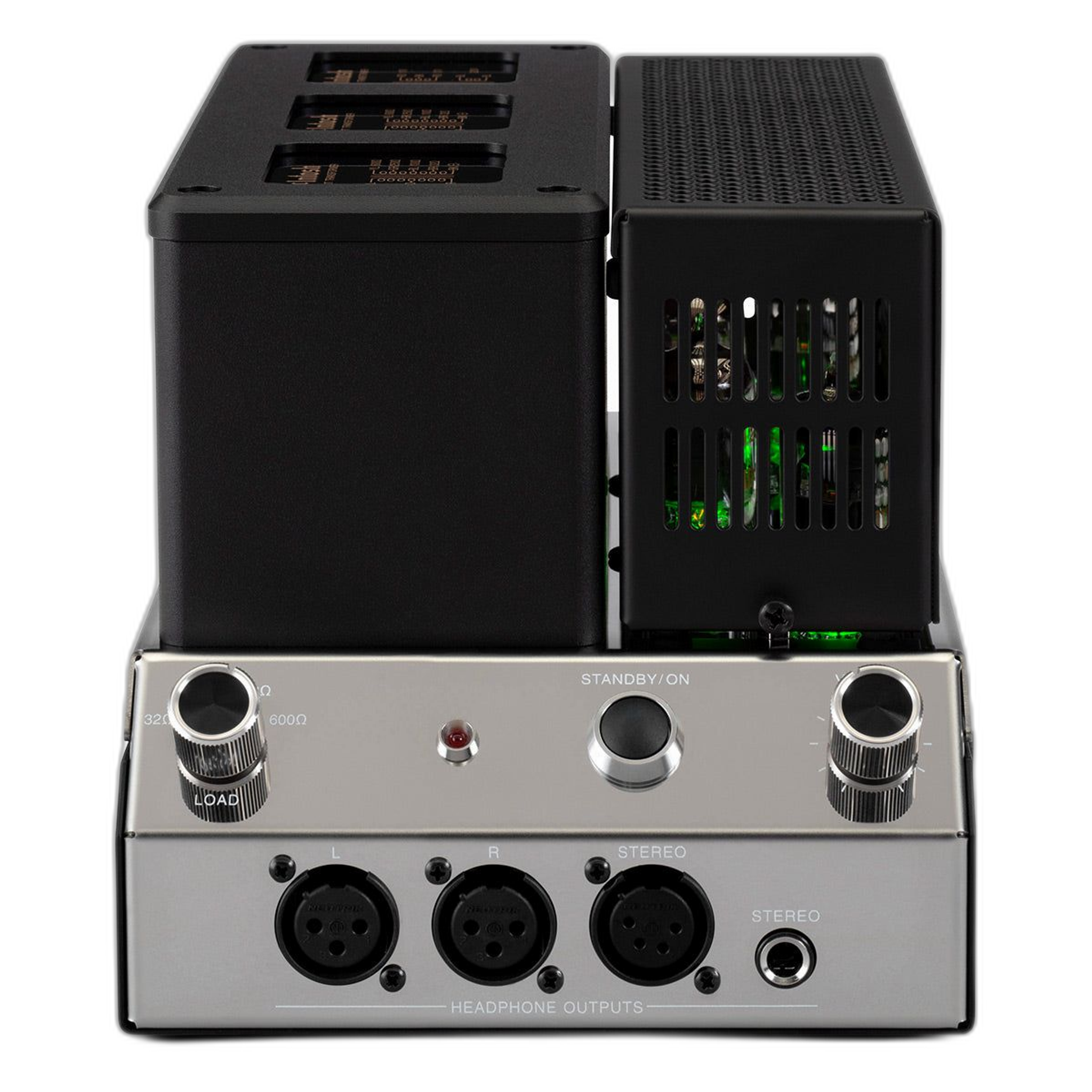

| Headphone Output | One pair of 3-pin balanced XLR connectors for dedicated Left and Right balanced output; One 4-pin balanced XLR connector for balanced stereo output; One 1/4" stereo headphone jack | Connectivity |
| Balanced Input | 1 | Connectivity |
| Unbalanced Input | 1 | Connectivity |
| Digital AES/EBU Input | 0 | Connectivity |
| Digital Coaxial Input | 0 | Connectivity |
| Digital Optical Input | 0 | Connectivity |
| Digital MCT (DIN) Input | 0 | Connectivity |
| Digital USB Input | 0 | Connectivity |
| Preamplifier Output | 0 | Connectivity |
| Tone Controls | No | Control |
| Power Control Input | 1 | Control |
| Power Control Output | 1 | Control |
| Output Meters | No | General Specifications |
| Vaccum Tube or Solid State | Vaccum Tube | General Specifications |
| Power Requirement | 120V 50/60Hz, 1.5A | General Specifications |
| Standby Power Requirement | <0.5 Watts | General Specifications |
| Output Type | Unity Coupled Output Transformer | General Specifications |
| Dimensions (W x H x D) | 6-1/8" x 5-3/4" x 9-1/8" | Weights & Dimensions |
| Weight | 10.5 lbs | Weights & Dimensions |
