SKU: MARANTZ-SACD10-CD
In Stock
Feature
Fully Marantz Designed & Built Transport
Feature
High-Resolution Audio Support
Feature
Versatile Connection Options
Feature
Headphone Amplifier
Feature

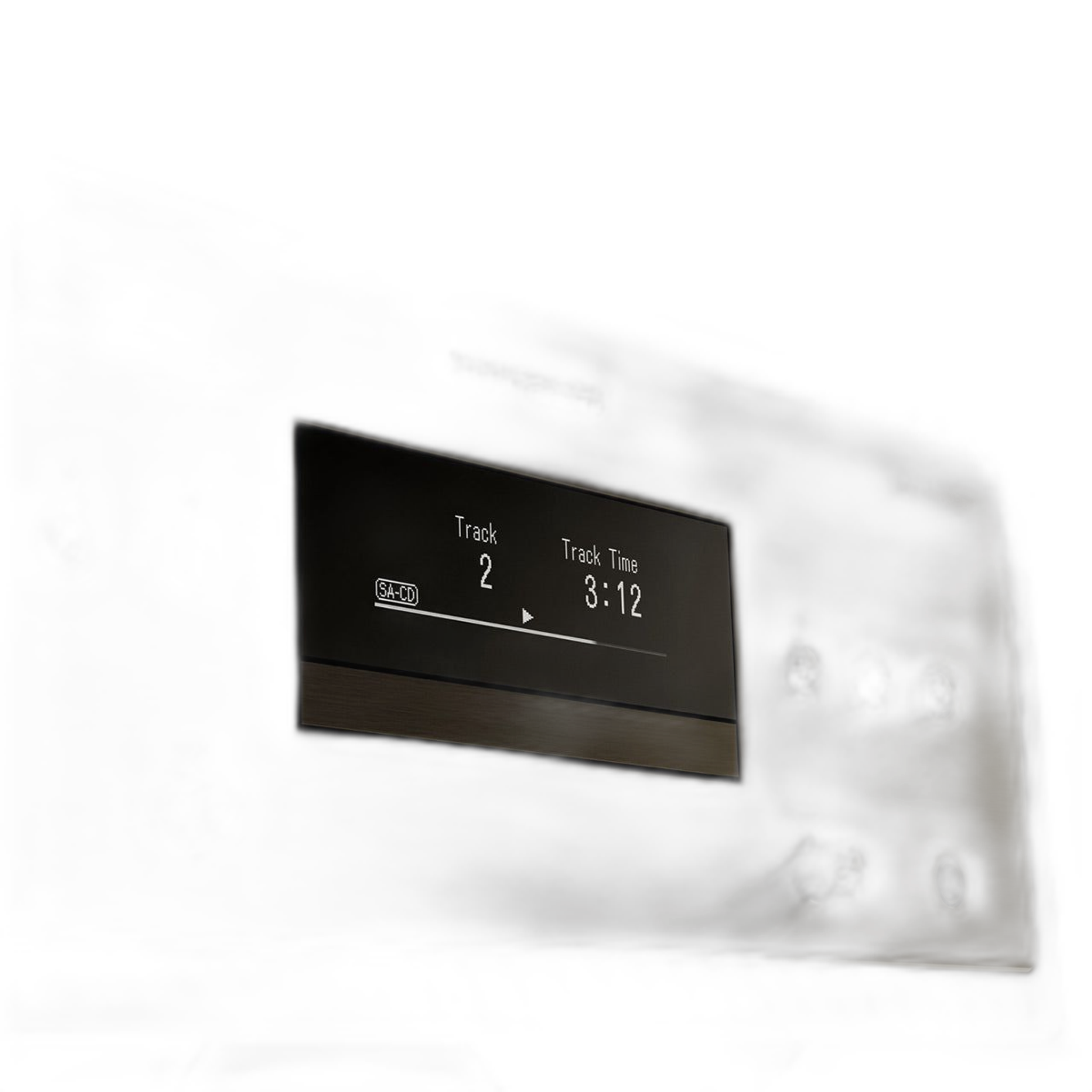

OLED Display
The Best of the Best
From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and HDAM module, SACD 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and remarkable design.
Crafted in Shirakawa
SACD 10 was conceived and engineered in our facilities in Shirakawa, Japan where the spirit of Kaizen is at the heart of each and every innovative technology. Only premium Marantz products are built here, where close collaboration between our highly experienced engineering team results in the highest performance. Products built here simply could not be built elsewhere.
Sound Master Tuned
SACD 10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail than ever before.
Iconic Details Reimagined for Tomorrow

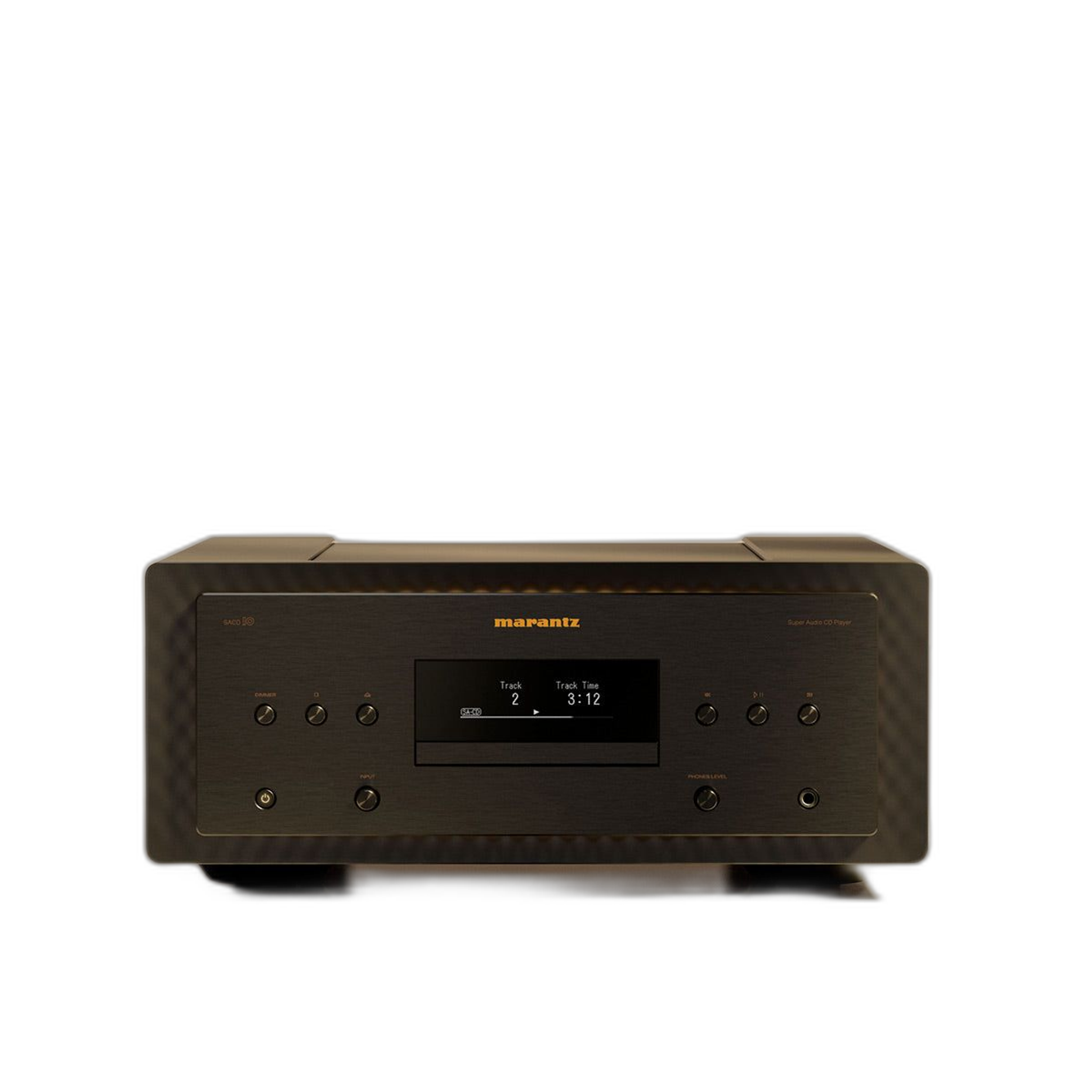

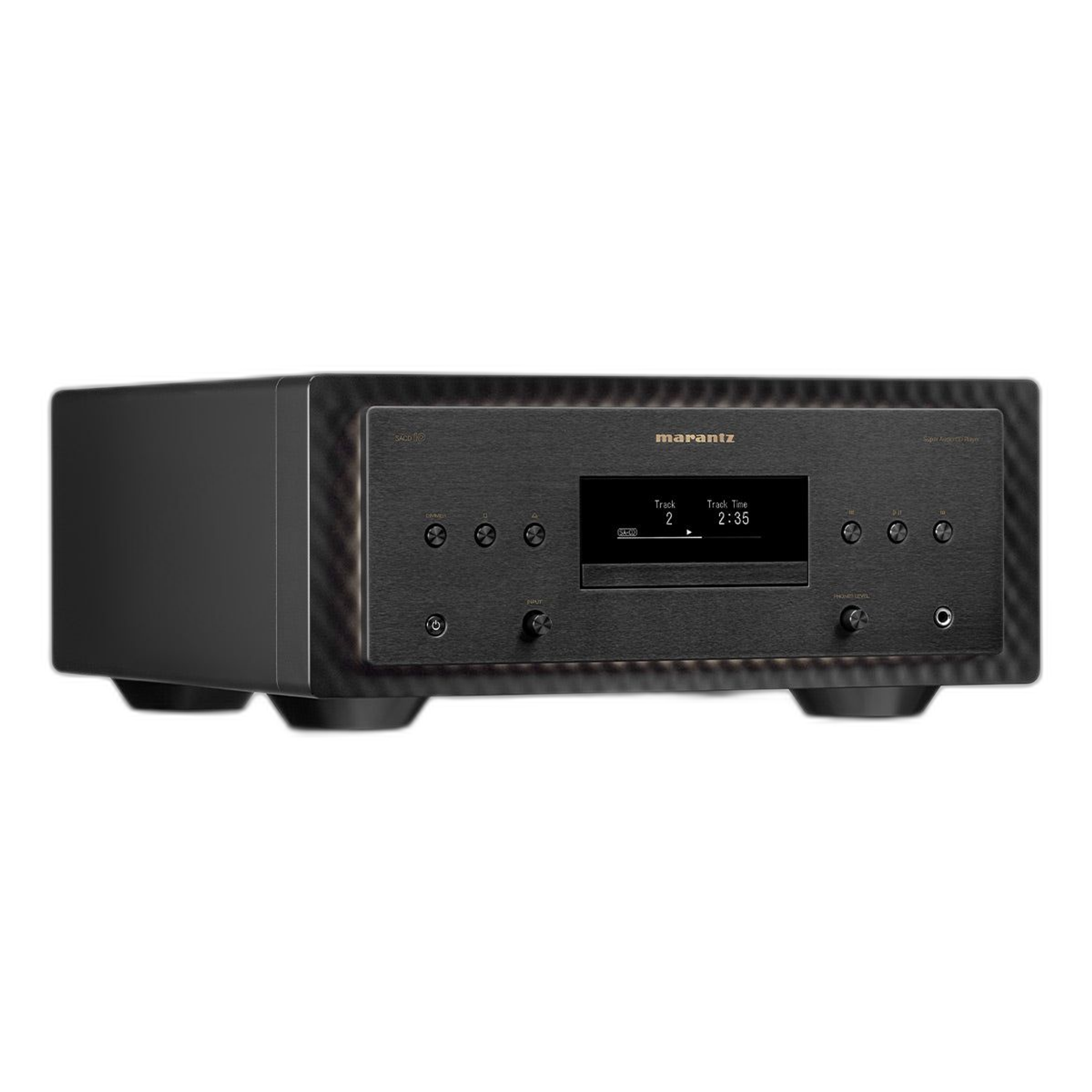

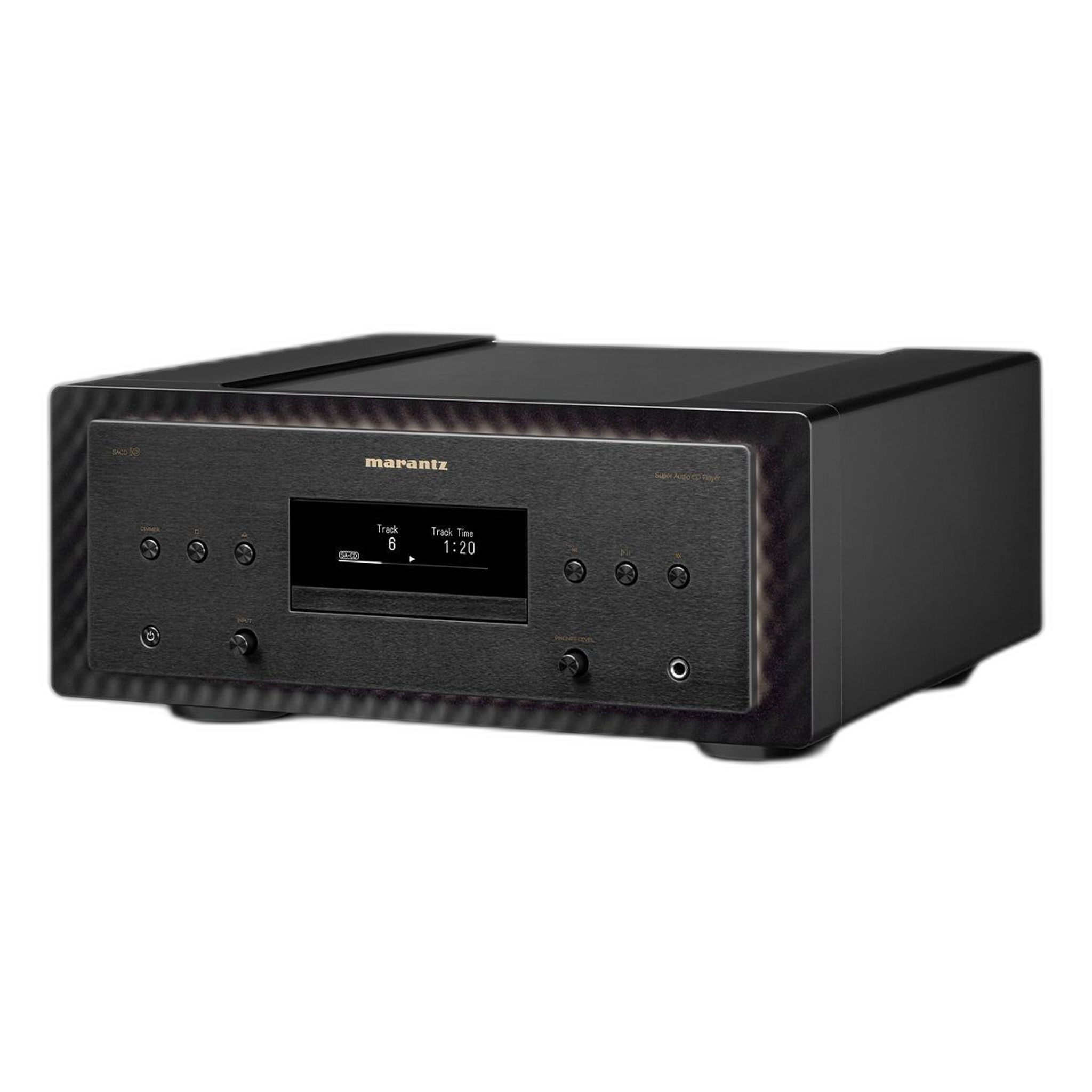

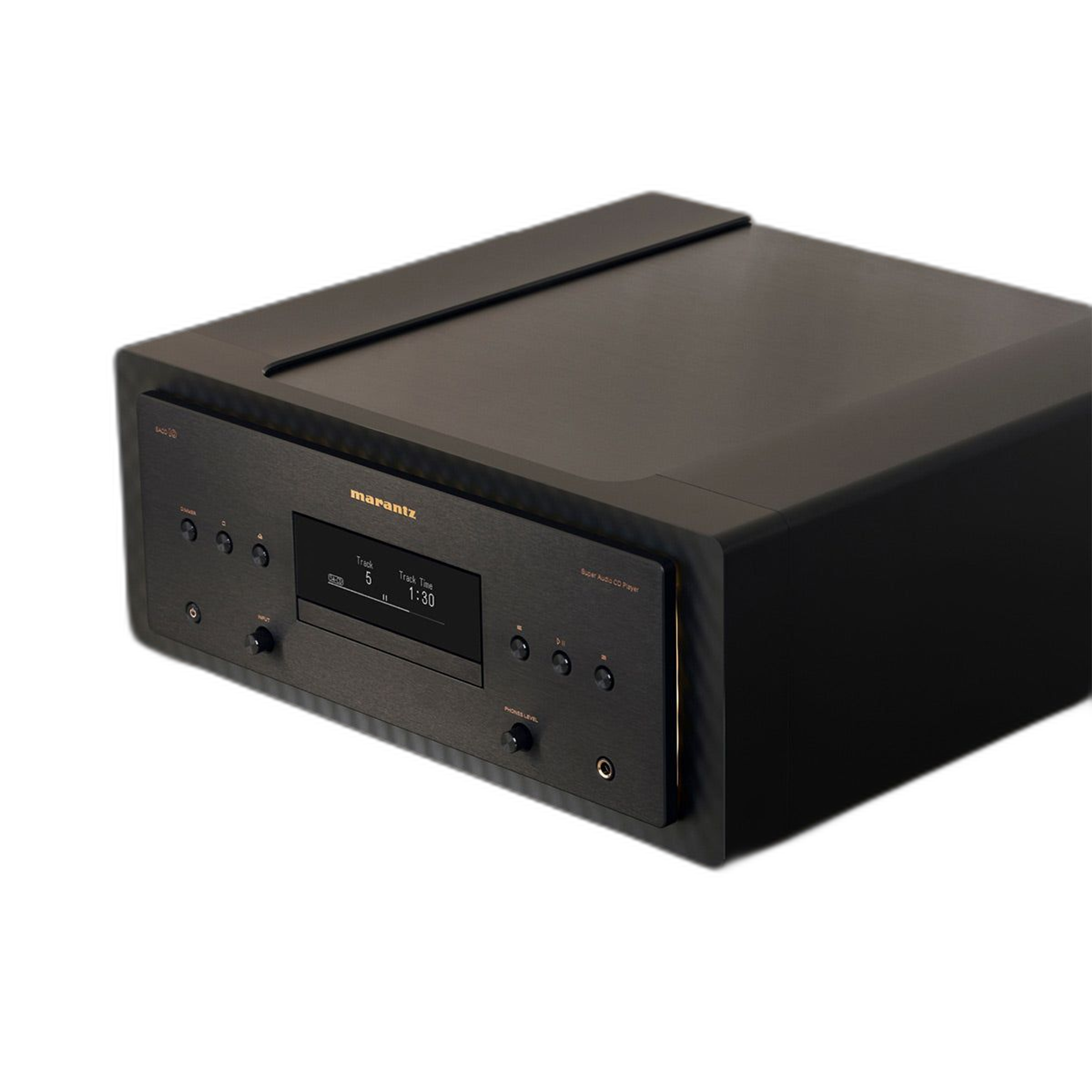

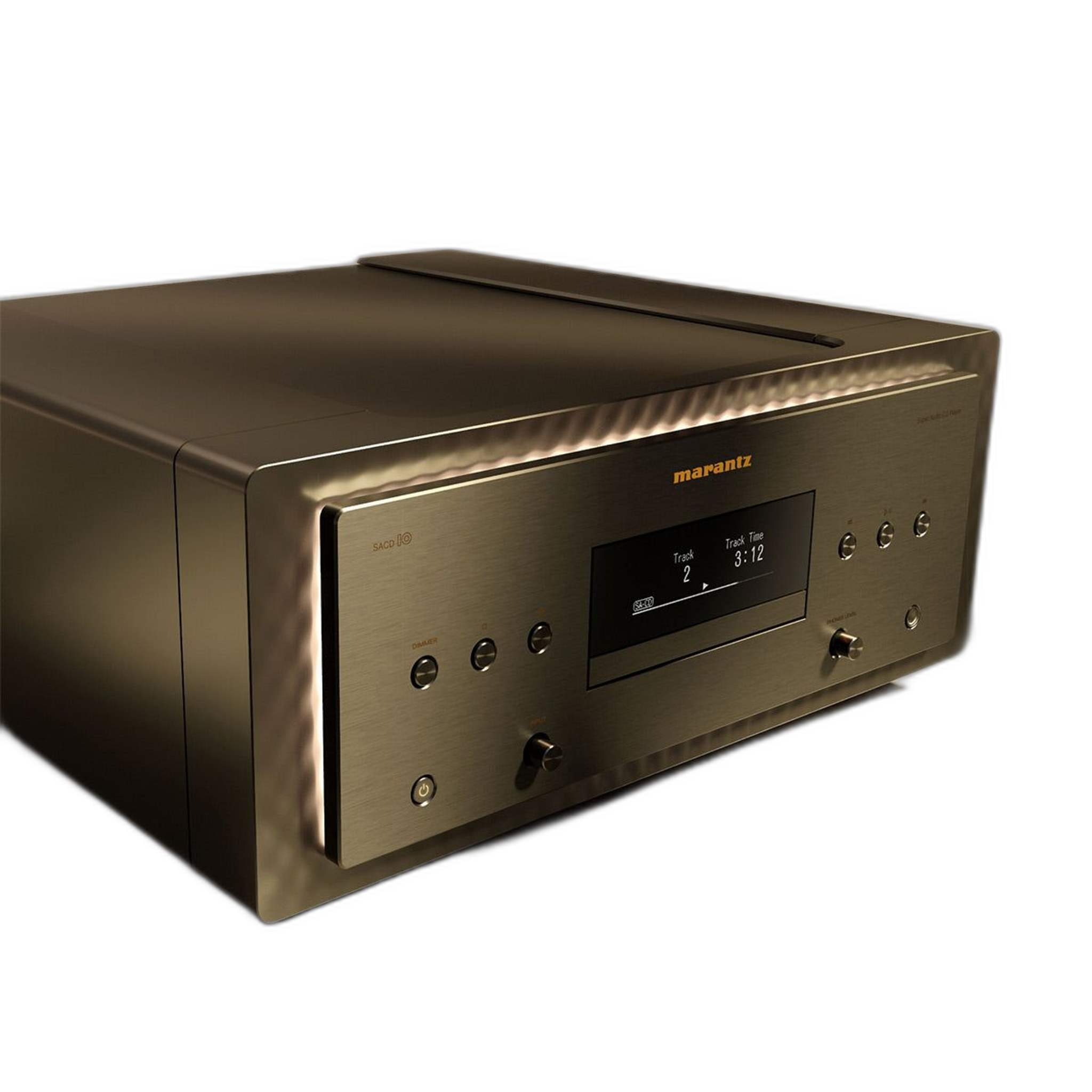

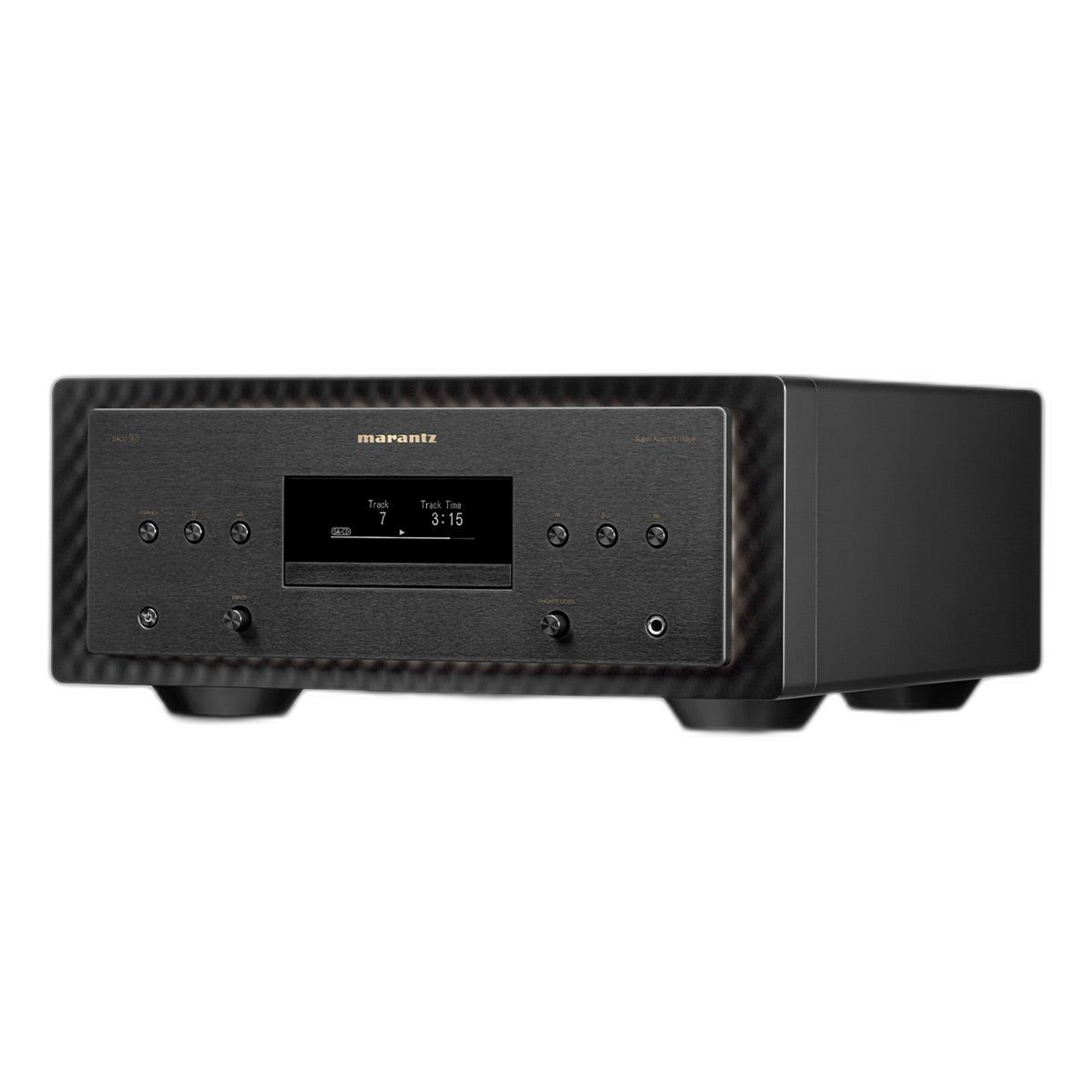

With a brushed aluminum control surface, spun finish details, a thick-section aluminum structure, copper-plated, triple-layered chassis, SACD 10 is in a class of its own. Available in two colorways, Marantz Black and Marantz Champagne to complement any setting.
High-Res Support

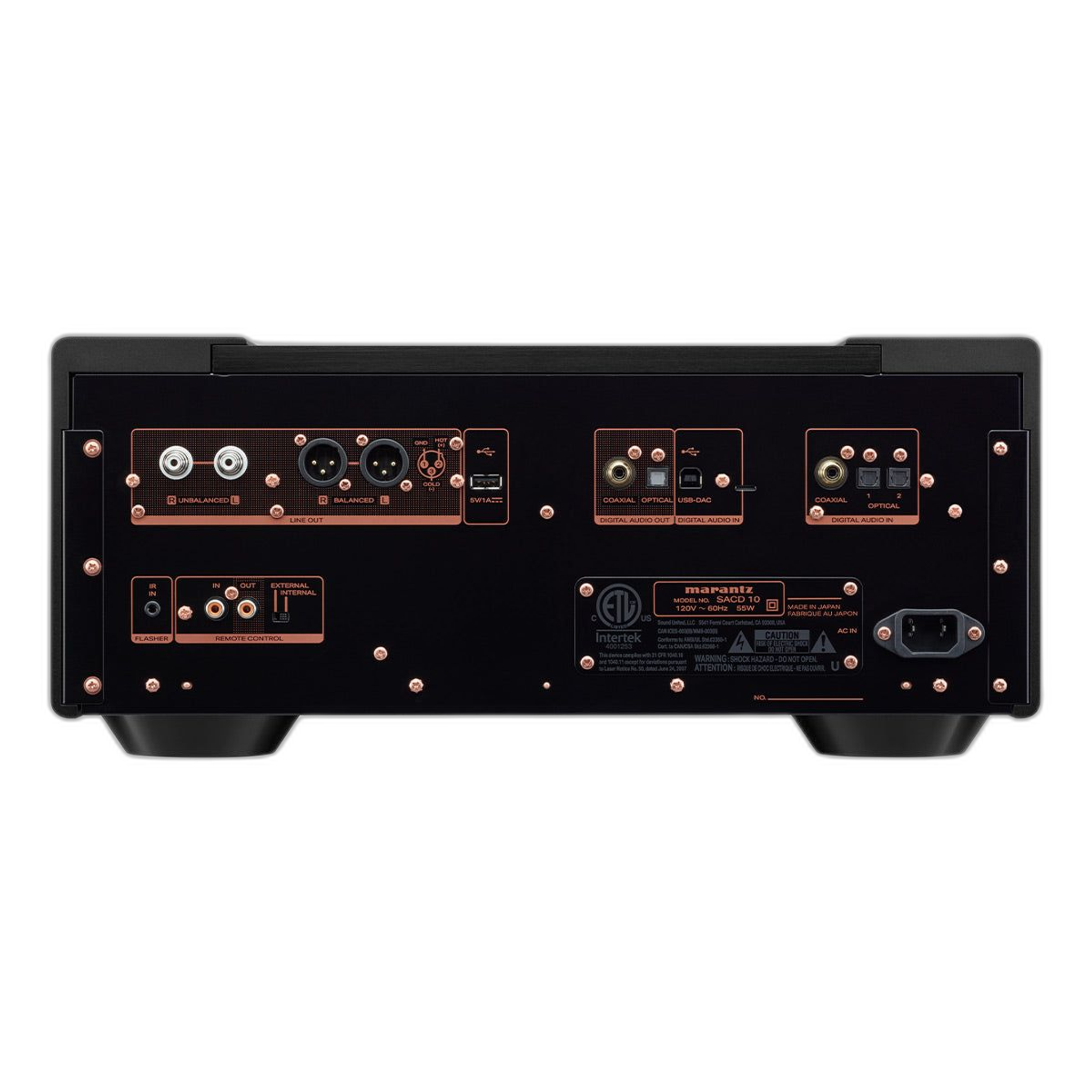

SACD 10 supports balanced sources via USB-A and USB-B DAC, plus DSD 256 and PCM 384 / 32 support. Connectivity options also include coaxial and optical digital outputs and inputs, and fixed level XLR and RCA analog outputs.
Pristine Sound
Made for the ultimate CD and SACD enthusiast, SACD 10 is engineered with updated Marantz Musical Mastering and a next generation HDAM module for impeccably detailed audio reproduction. Crafted to be the very best by the world’s leading maker of SACD players with a fully Marantz designed and built transport SACDM-3, SACD 10 is built to the same extraordinary standards as the other 10 Series components for maximum rejection of noise and resonance.
Model
SACD10/U1B
UPC
747192142810
| Specification | Value | Info |
|---|---|---|
| Unit (W × H × D mm) 440 × 192 × 442 | General | |
| Cabinet Size 440 × 192 × 422 | General | |
| Net weight 33.0 kg | General | |
| SACD | 2Hz–50kHz (-3dB) | Audio |
| CD | 2Hz–20kHz (±1.0dB) | Audio |
| SACD | 0.0004% | Harmonic distortion |
| CD | 0.0015% | Harmonic distortion |
| SACD | 118dB | S/N |
| CD | 116dB | S/N |
| SACD | 112dB | Dynamic range |
| CD | 98dB | Dynamic range |
| UNBALANCED | 2.0Vrms |
| Line Output Level |
| BALANCED | 4.0Vrms | Line Output Level |
| Output Circuit | New HDAM | Audio Feature |
| Power Transformer | Toroidal | Audio Feature |
| Headphone Circuit | Discrete | Audio Feature |
| H/P Amp Gain Setting | Yes (Low / Mid / High) | Audio Feature |
| H/P On.Off Setting | H/P Off automatically, when in use | Audio Feature |
| DAC Circuit | New MMM-Conversion | Audio Feature |
| Dither | MMM-Stream (Dither 1, 2, Off) | Audio Feature |
| Noise Shaper | MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice) | Audio Feature |
| Digital Filter | MMM-Stream (Filter 1, 2 Selectable) | Audio Feature |
| Jitter Reducer | Yes | Audio Feature |
| DAC Master Clock Design (No Support for Network Playback) | Yes | Audio Feature |
| Asynchronous mode (for USB-B input) | Yes | Audio Feature |
| Isolator (for USB-B input) | Yes (Complete Isolation System Duo) | Audio Feature |
| Fixed Analog Output (RCA) | Cinch × 1 (Thick nickel plated Maching copper L/R independent terminals) | Connectivity |
| Fixed Balanced XLR Output | 1 | Connectivity |
| Optical input / output (Maximum Support) | 2/1 (44.1 kHz - 192 kHz) | Connectivity |
| Coaxial input / output (Maximum Support) 2/1 (44.1 kHz | 192 kHz) | Connectivity |
| Headphone Output | Yes (f6.3 x 1) | Connectivity |
| Remote Control Bus Terminal | Yes | Connectivity |
| Remote Internal / External Switch | Yes | Connectivity |
