JBL
SKU: JBL-STAGE-220P
In Stock
Feature
Bass-Reflex Design with Rear Ports
Feature
12” Low-Frequency Woofer
Feature
Line-Level LFE Input
Feature
Adjustable Floor Spikes
Feature

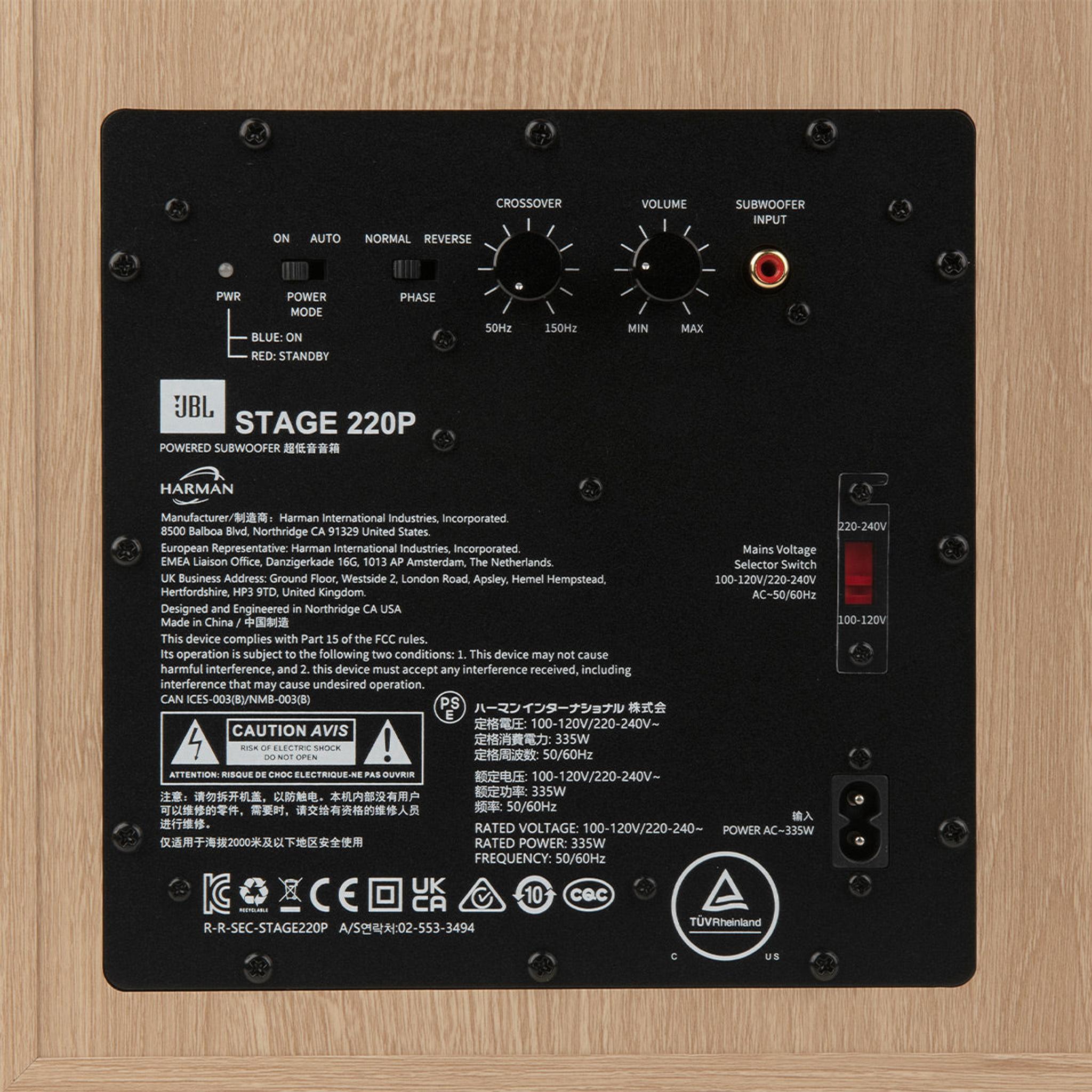

Rear-Mounting Volume, Crossover Phase, & Power Controls
Feature

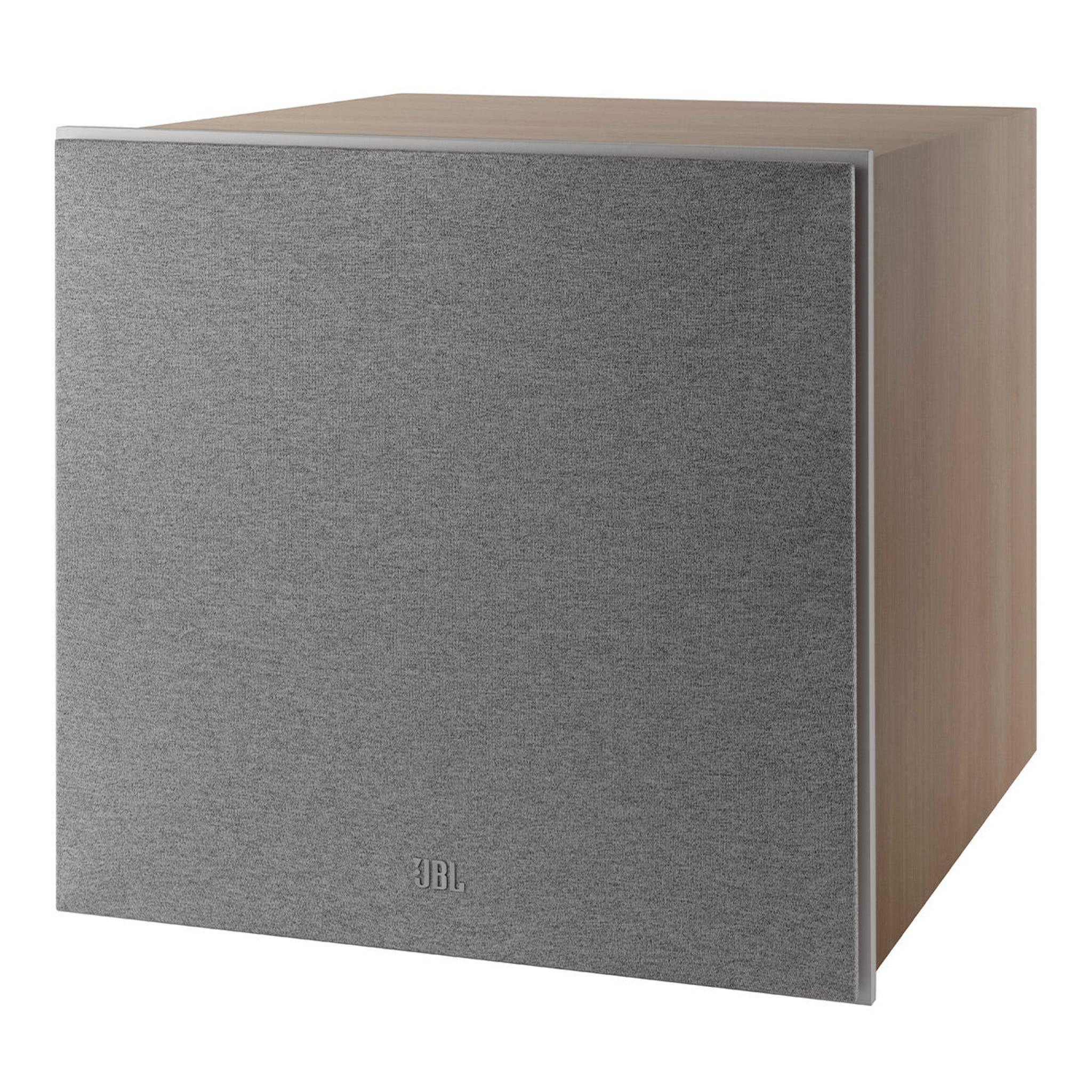

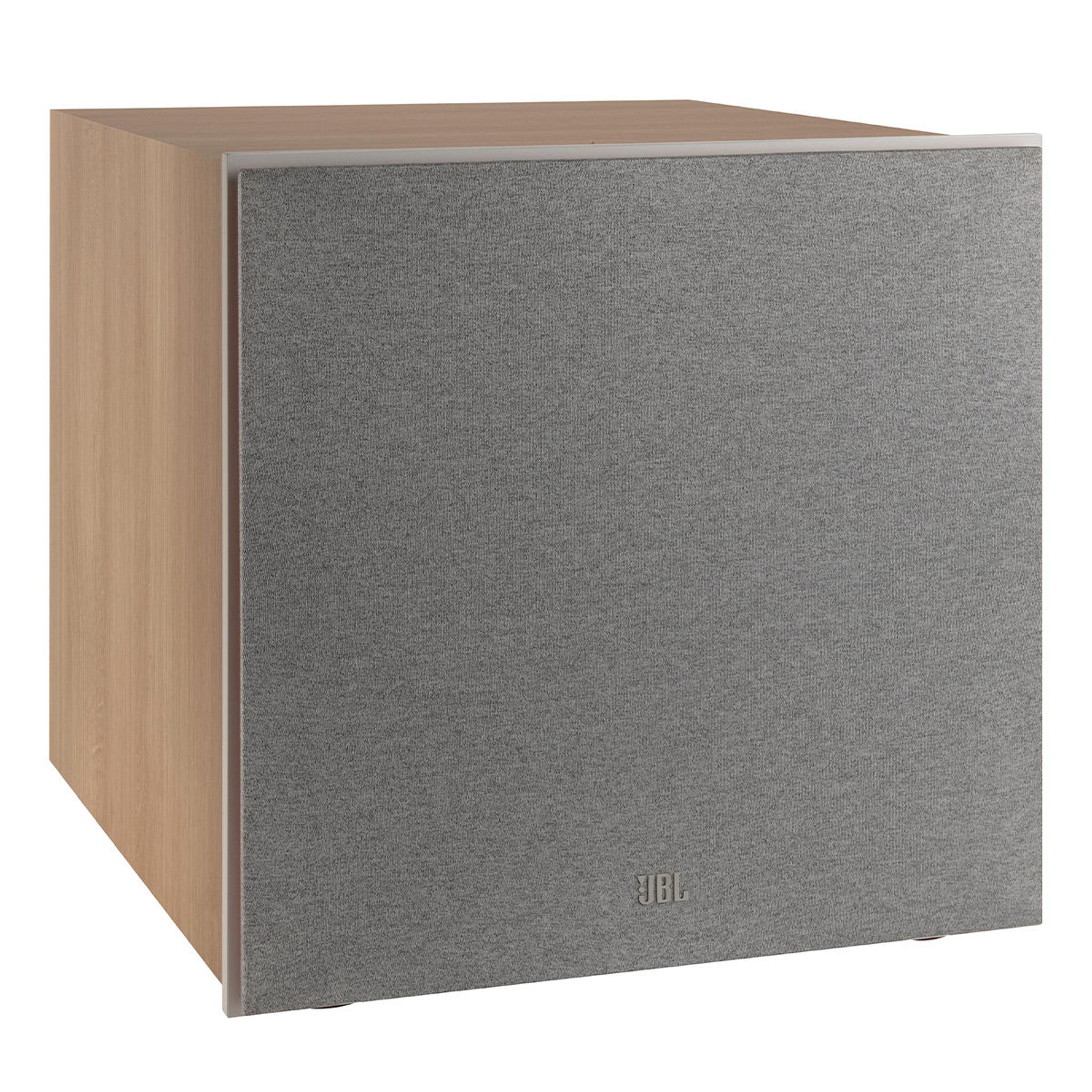

Magnetically Attached Grilles

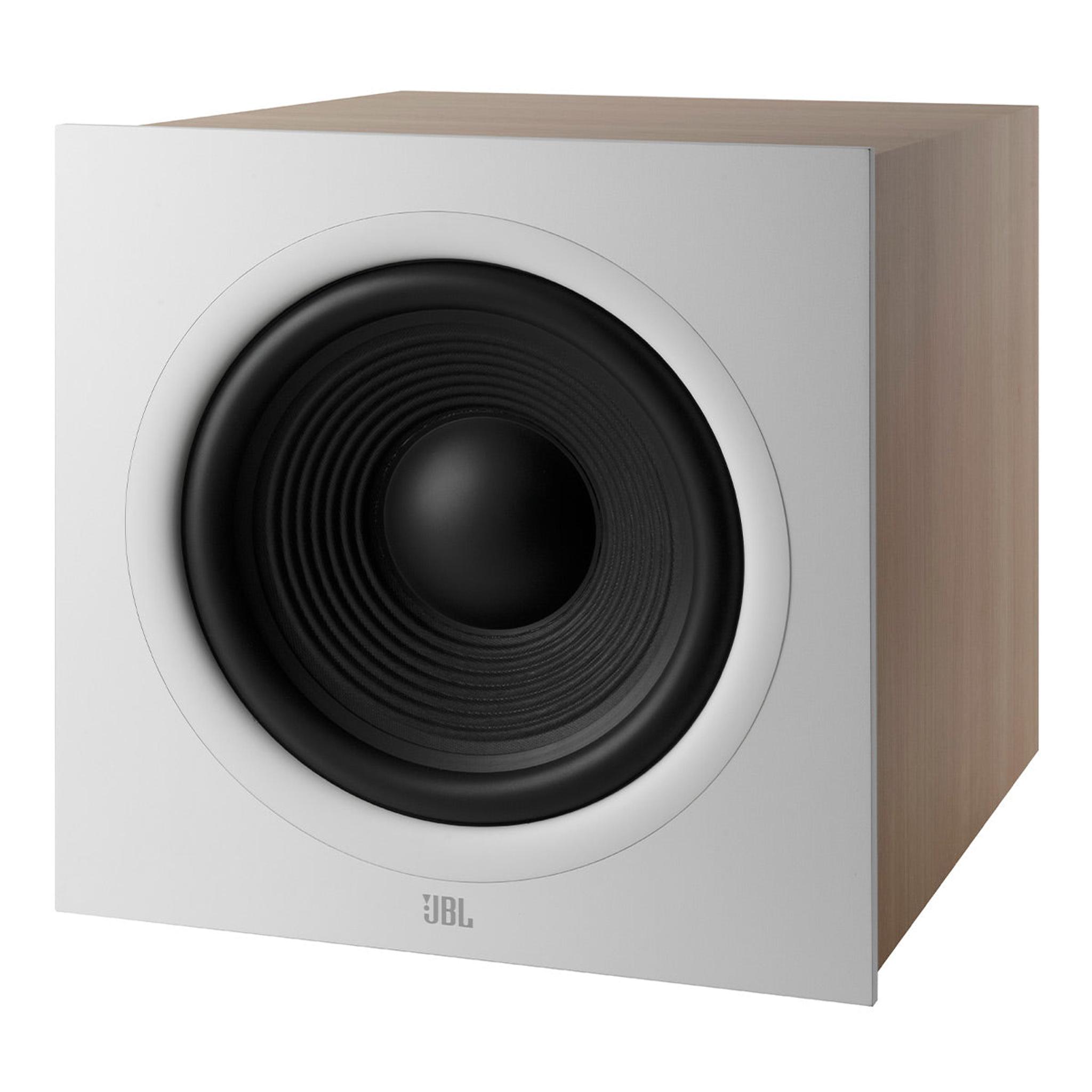

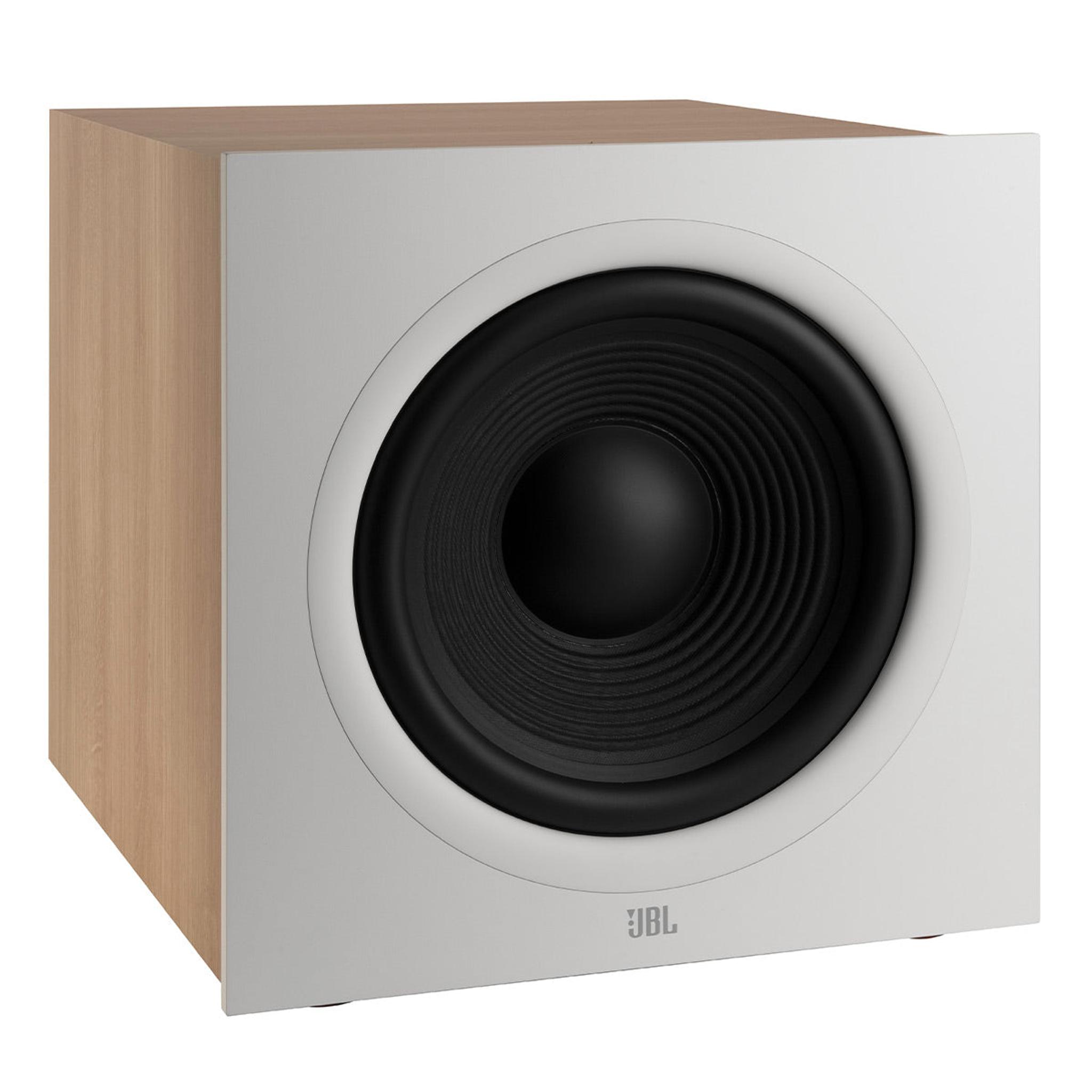

12” Polycellulose Ribbed Cone Low-Frequency Woofer
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
300-Watts RMS Amplifier
The built-in high-performance 500-watt amplifier provides impactful and memorable sound quality deserving of the JBL name. The 220P can be placed anywhere in the room and connects to your AVR to create a stereo or multi-channel home theater system with impactful bass and unprecedented performance.

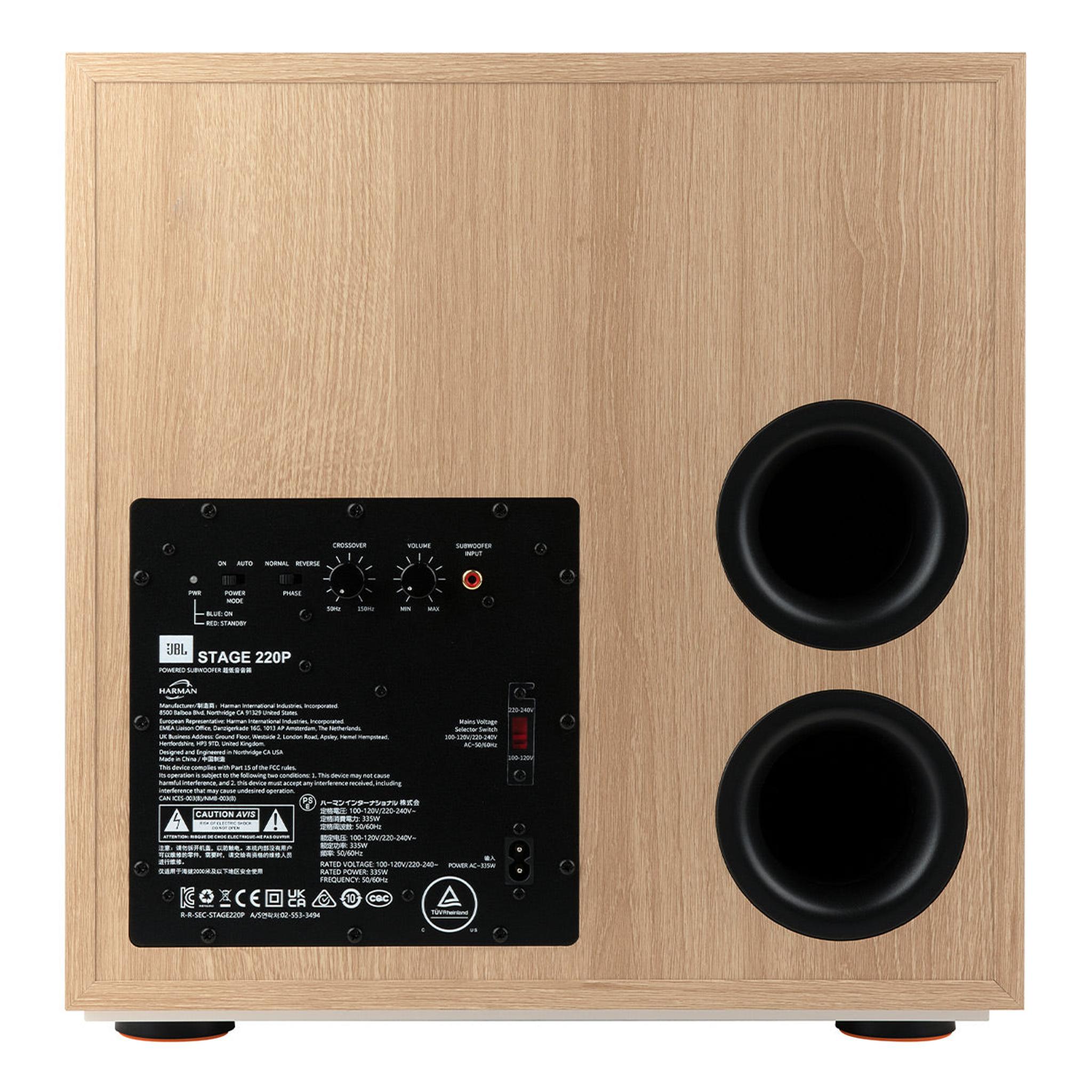

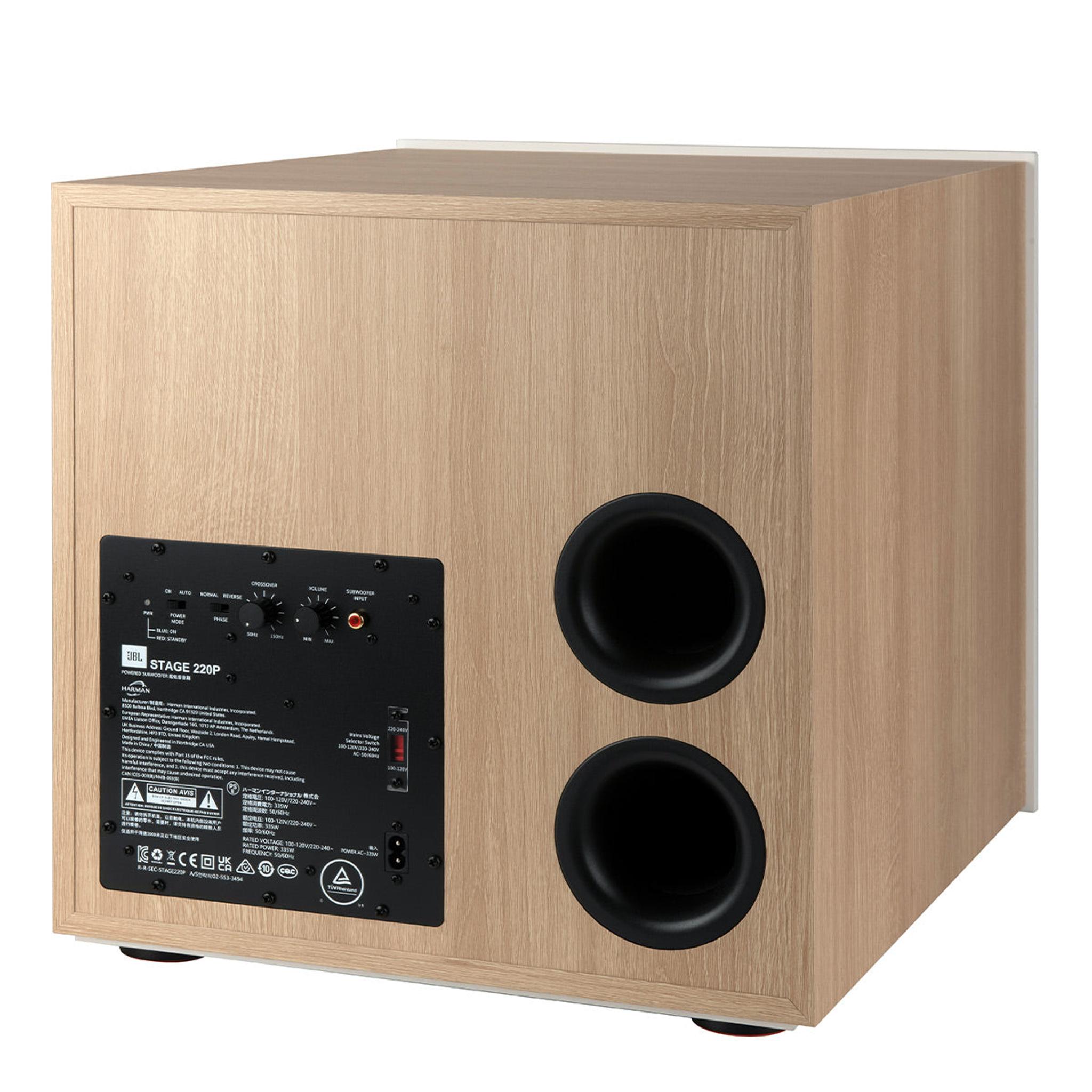

Bass-Reflex Design with Dual Rear-Firing Flared Ports
The Bass-Reflex design of the 220P use dual rear-firing flared ports. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.
Model
JBL220PWHTAM
UPC
050036402040
| Specification | Value | Info |
|---|---|---|
| Type | Powered Subwoofer | General |
| Low Frequency Driver | 12-inch (300mm) Polycellulose Ribbed High Excursion | General |
| Amplifier Power | 250W RMS (500W Dynamic) | General |
| Frequency Response ± 6dB | 26Hz-150Hz | General |
| Crossover Frequencies | 50Hz-150Hz (variable) 24dB/octave | General |
| Controls | 35Hz-150Hz | General |
| Controls | Auto Power, Crossover, Level, Phase | General |
| Inputs | One (1) Line-Level LFE Input | General |
| Enclosure Tuning | Bass-Reflex via Dual Rear-Firing Tuned Ports | General |
| Power Requirements | 120V, 60Hz (US) 220-230V, 50/60Hz (EU) | General |
| Power Consumption |
| <0.5W (standby) / 205W/1.6A (max - 230V) / 205W/3.15A (max - 120V) |
| General |
| Dimensions (W x H x D) | 15.9" x 16.4" x 17.5" | Dimensions |
| Product Weight | 41.2lbs. | Dimensions |
