HiFi Rose RD160 DAC (Silver)

Feature

Balance-Designed DAC

Feature

Fiber Optic USB

Feature

Hidden Screen

Feature

(4) Upsampling Options & (6) Digital Filters

Feature

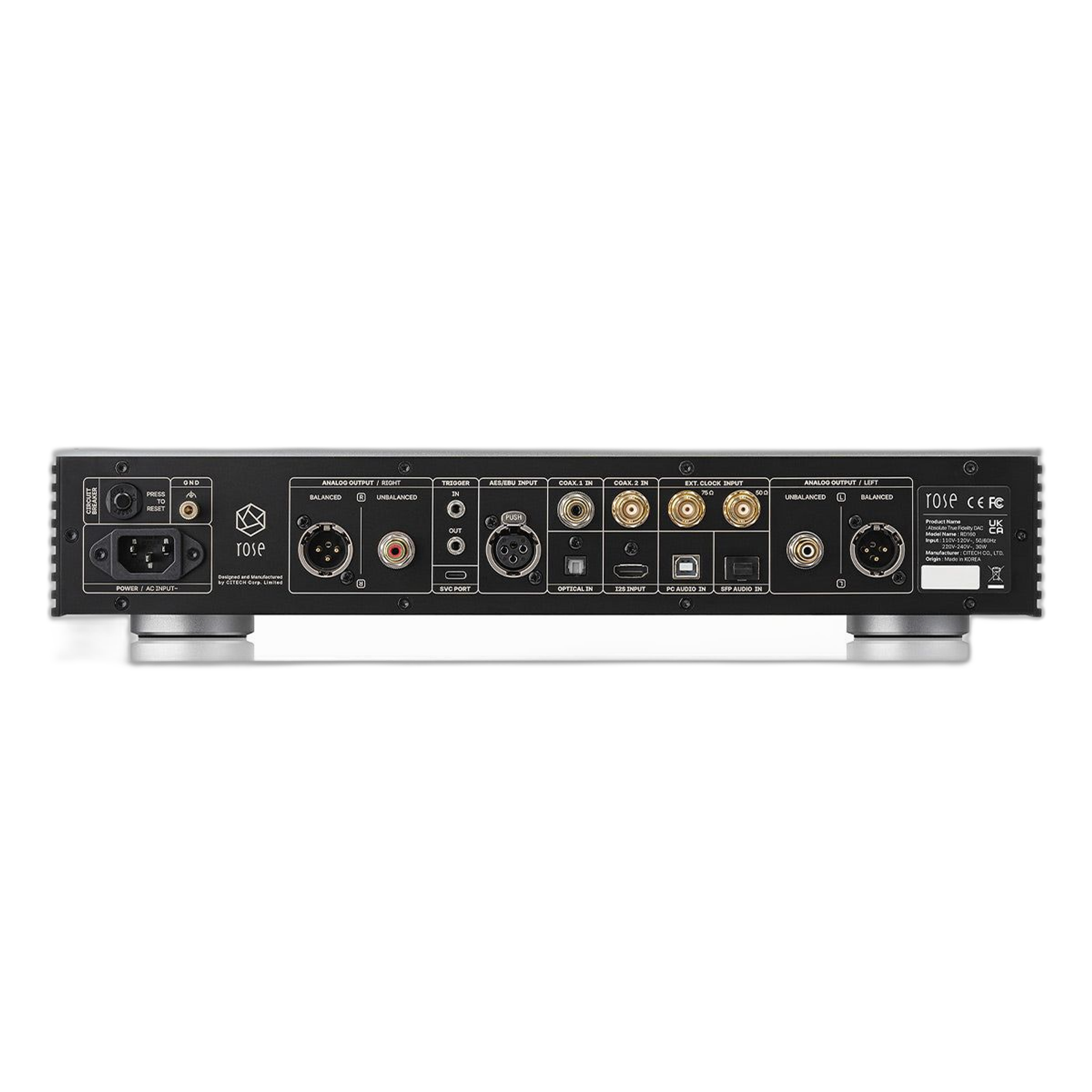

External Master Clock Input

Upsampling & Filter

The RD160 offers various options. For upsampling, it provides four options: NOS, PCM, DSD, and ALL. PCM supports up to 32bit/768kHz, and DSD supports up to DSD512. Additionally, the digital filter offers six different types of impulse responses, allowing users to select according to their preferences. These two features can be easily configured using the button located on the left side of the front panel, and the changes are instantly reflected on the Hidden Screen without any delay.

Fiber Optic USB

The SFP USB, featuring optical converting functionality, completely blocks digital noise from the source device. When connected to RS130, which supports SFP USB ports, you can receive pure data without any noise interference, ensuring the cleanest transmission possible.

External Master Clock Input

Audio sources require a master clock input that outputs synchronized audio data with the master clock. By applying this method, jitter from optical, coaxial, and AES/EBU connections from the audio source to the DAC can be eliminated, supporting perfect synchronization between devices tailored to the operating environment.

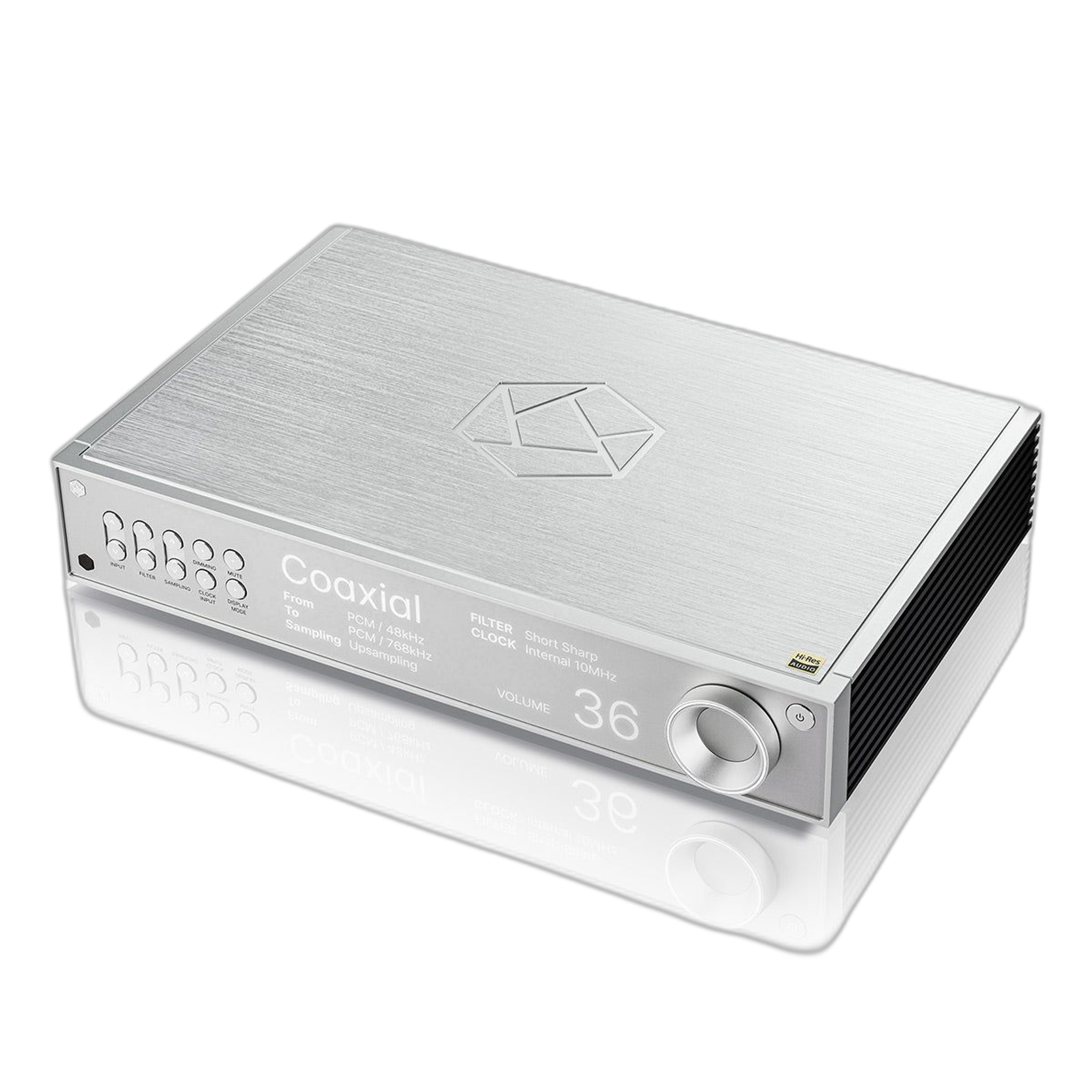

Hidden Screen

Designed with simplicity and sophistication to convey coherence with HiFi ROSE network devices, RD160 features a Hidden Screen on its front panel. When powered on, the circuit-like design flow chart, sound waves, and volume curve displayed on the screen intuitively present various information at a glance. Additionally, immediate responses to button and know operations without any delay, offers a sensation of controlling an analog device. Thus, the RD160 not only enhances the pleasure of listening but also adds the visual satisfaction plus enjoyment of manipulation.

Design

The RD160 utilizes a specially processed aluminum case, machined from high-purity aluminum as a single piece with minimized assembly joints, to minimize vibrations that could adversely affect sound quality. Additionally, the side panels with heat sink design efficiently dissipate heat, ensuring stable operation even during prolonged use.

Model

RD160DAC

UPC

8809756420210
