Gustard

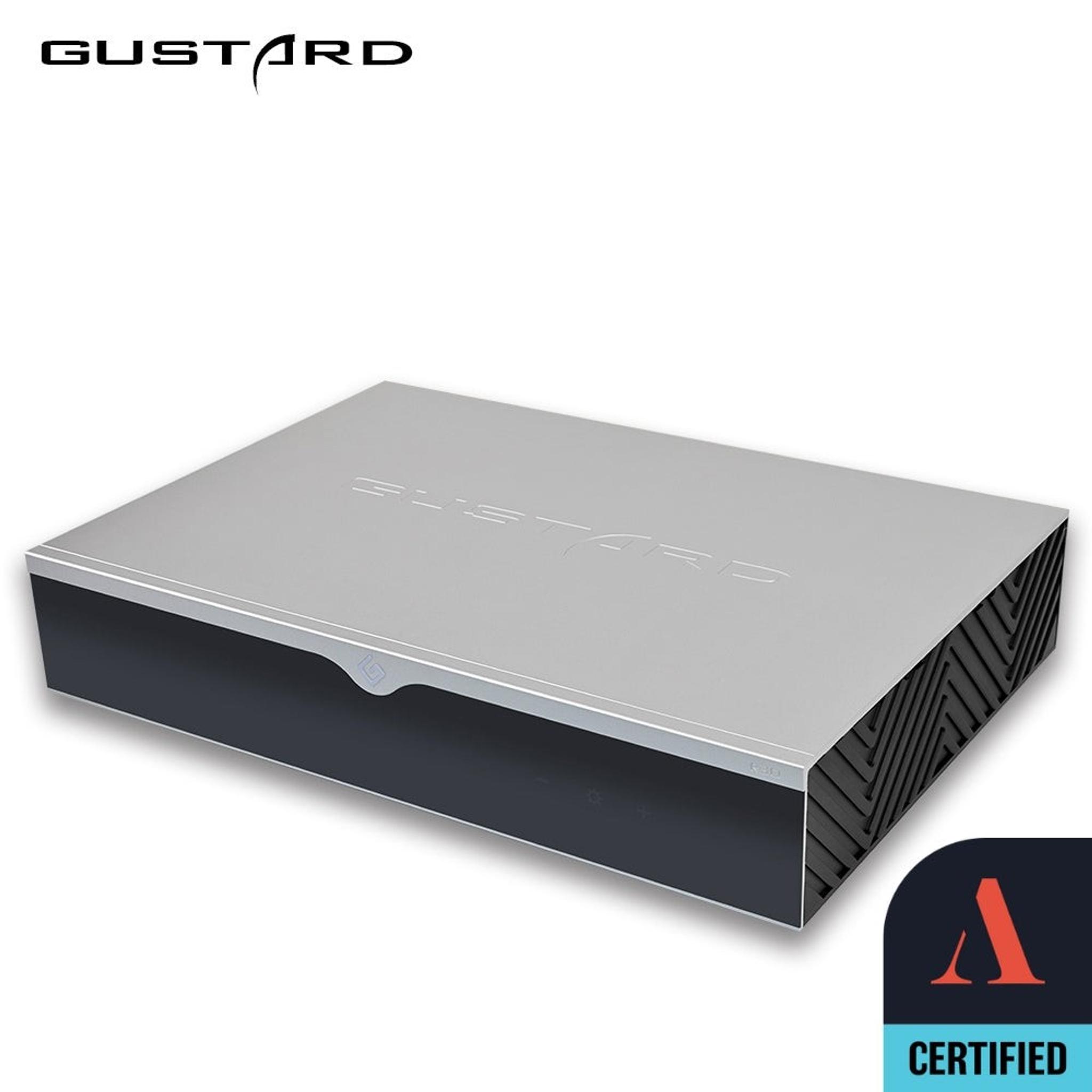

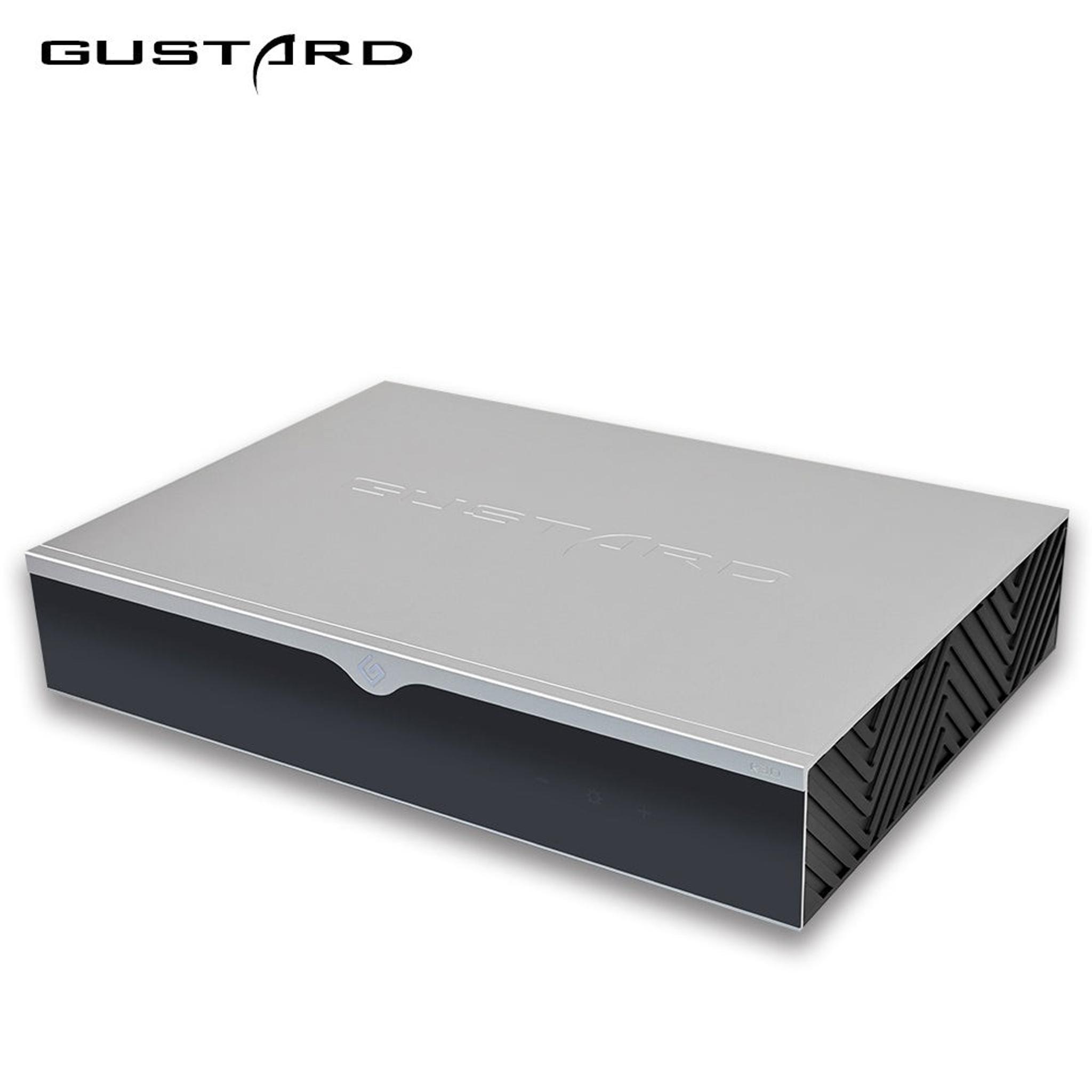

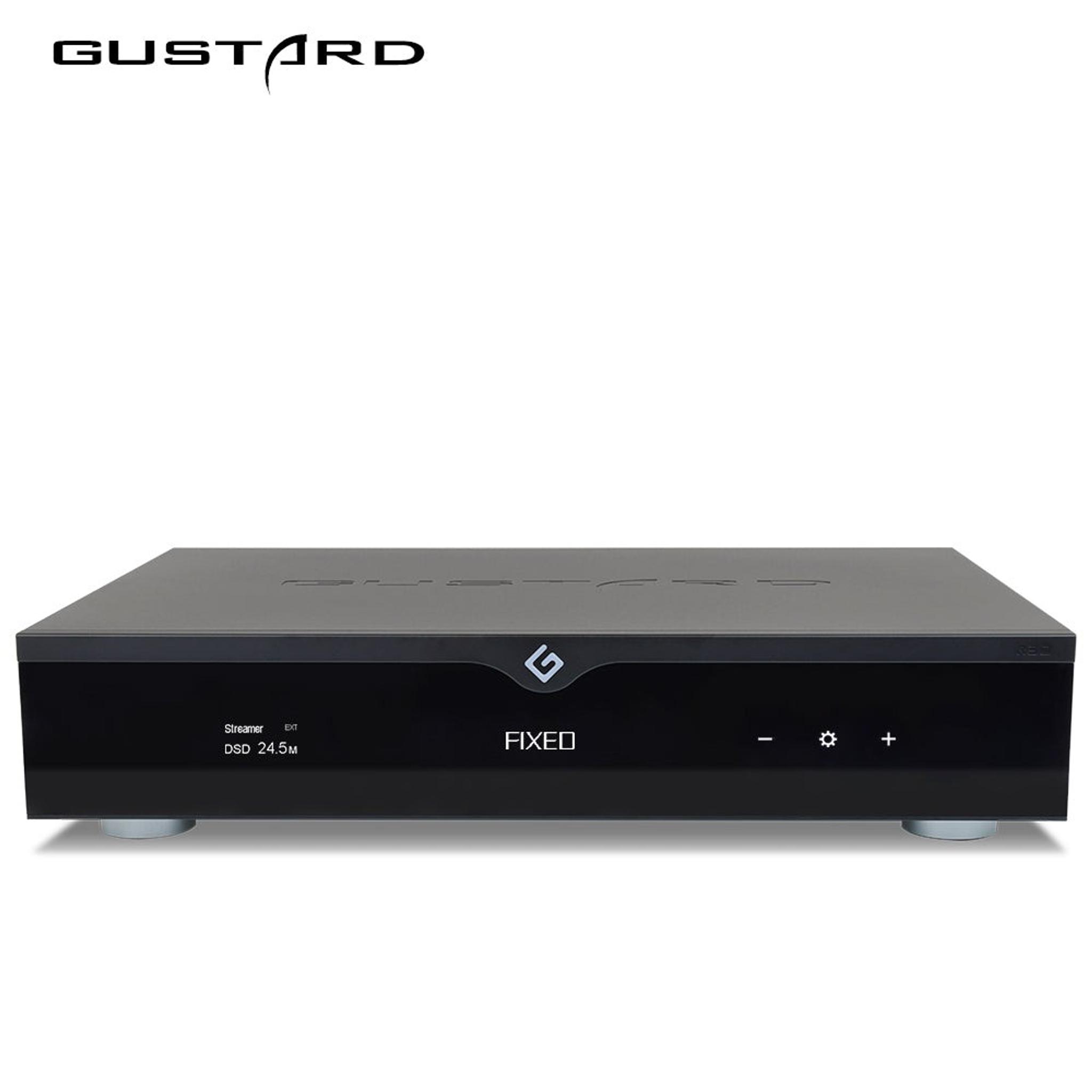

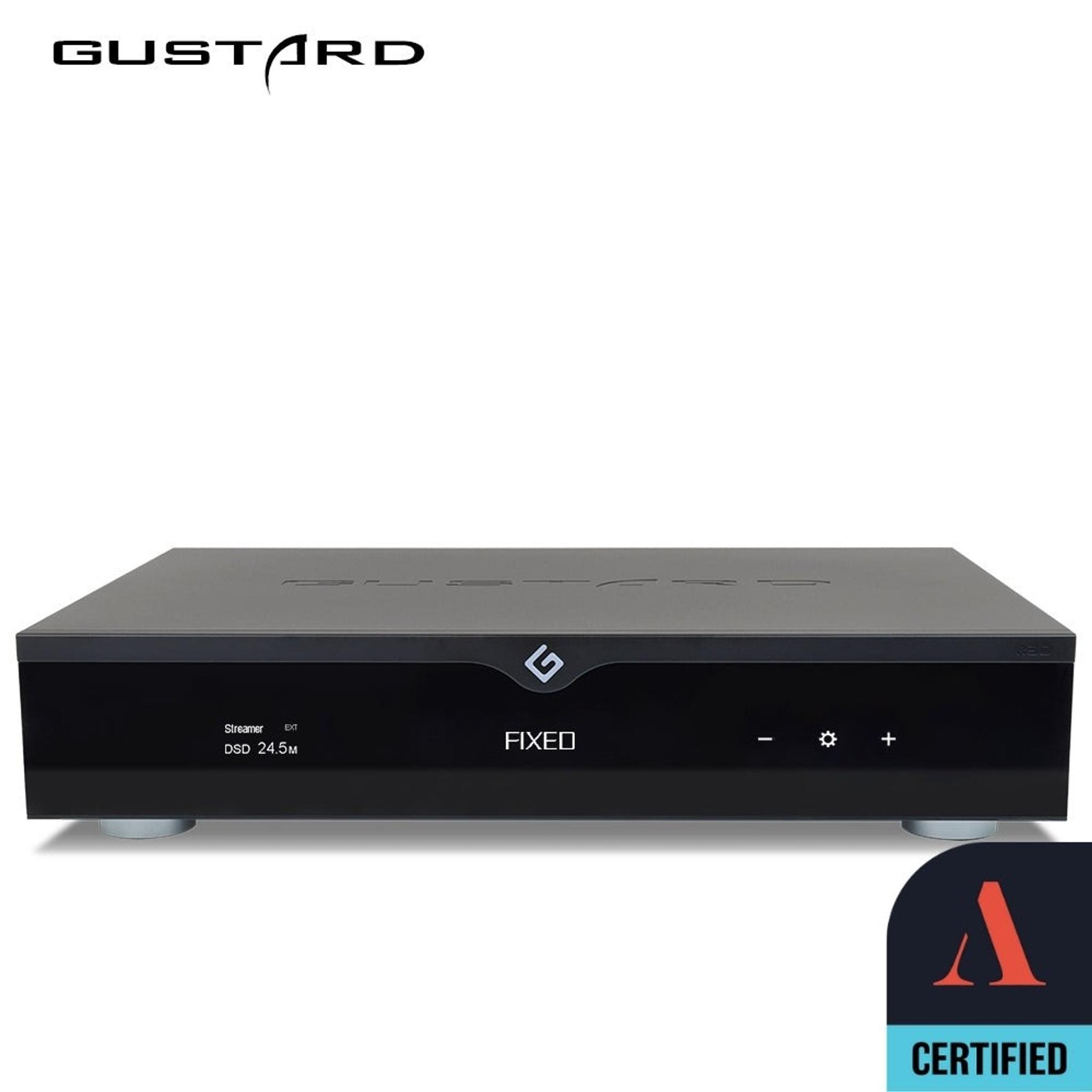

GUSTARD R30 Fully-Discrete R2R Network Streaming DAC (Apos Certified)
$601
In Stock
Domestic Multi-Carrier Shipping · 2-Year Warranty · Expert Support
Full Details
Description

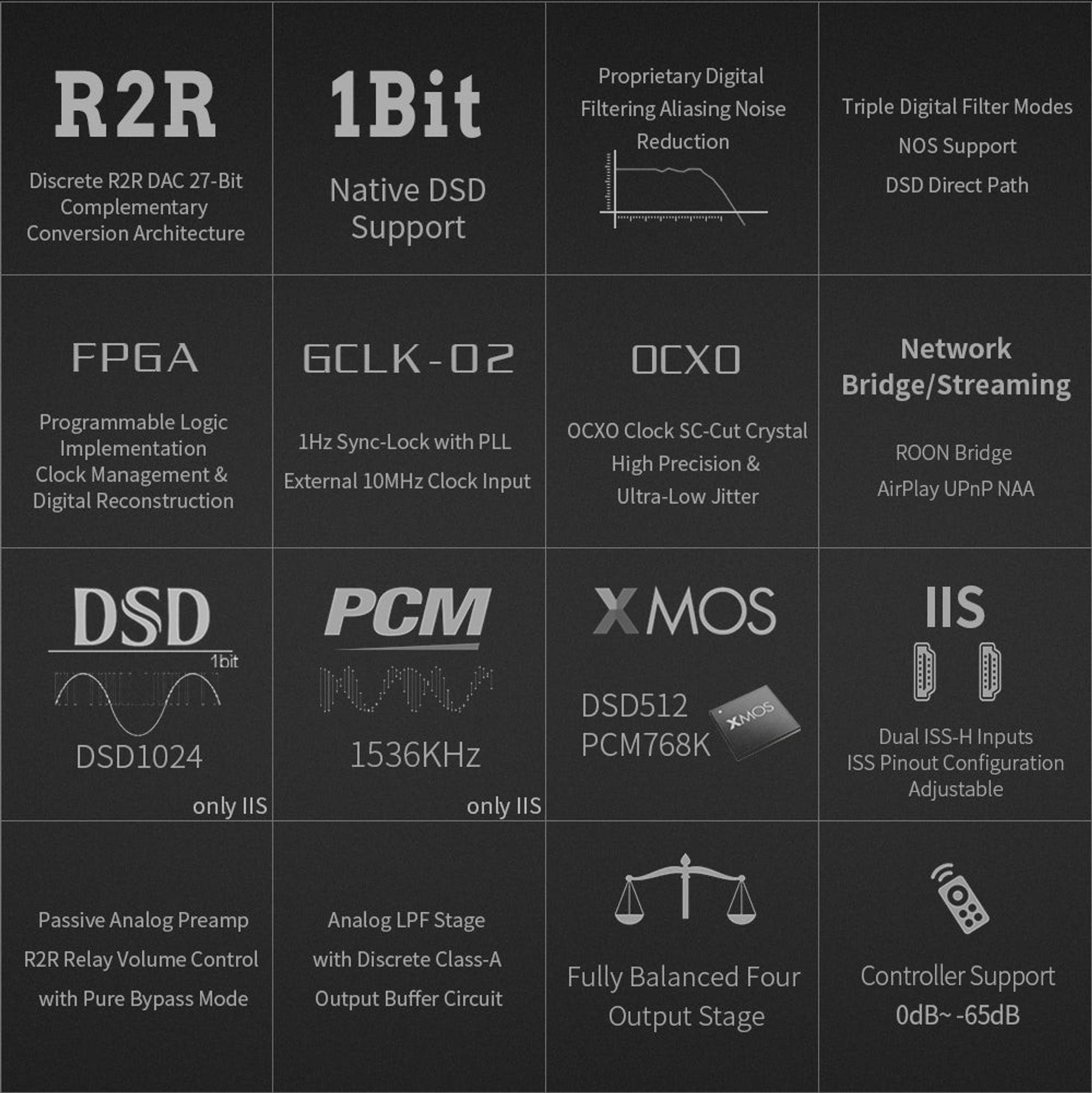

Fully discrete R2R DAC with native DSD1024 decoding, FPGA clock management, and a CelWare-based network bridge. The R30 delivers an organic, natural sound through a precision resistor ladder, discrete Class-A analog stage, OCXO clocking, and relay-based passive preamp control — digital done differently.
Specifications
| Specification | Value |
|---|---|
| Digital performance PCM | up to 1536kHz (I²S), 768kHz (USB) DSD: up to DSD1024 (I²S), DSD512 (USB) Digital filter modes: Linear Sharp, Minimum Slow, Super Slow |
| PCM | up to 1536kHz (I²S), 768kHz (USB) |
| DSD | up to DSD1024 (I²S), DSD512 (USB) |
| Digital filter modes | Linear Sharp, Minimum Slow, Super Slow |
| Analog output Frequency response | 20Hz–20kHz / ±0.2dB Dynamic range: >123dB SNR: >121dB Crosstalk: –139dB @10kHz THD+N: ≤0.00145% @1kHz IMD: ≈0.002% @ –1dBFS RCA: 2.5Vrms fixed, 100Ω XLR: 5.1Vrms fixed, 100Ω |
| Frequency response | 20Hz–20kHz / ±0.2dB |
| Dynamic range | >123dB |
| SNR | >121dB |
| Crosstalk | –139dB @10kHz |
| THD+N | ≤0.00145% @1kHz |
| IMD | ≈0.002% @ –1dBFS |
| RCA | 2.5Vrms fixed, 100Ω |
| XLR | 5.1Vrms fixed, 100Ω |
| Clocking Internal | SC-cut crystal OCXO with ultra-low jitter External clock input: 10MHz BNC, 50Ω, 0–20dBm |
