FiiO BTR11 Portable DAC and Headphone Amp
$19.99
CrinEar
In Stock
Description

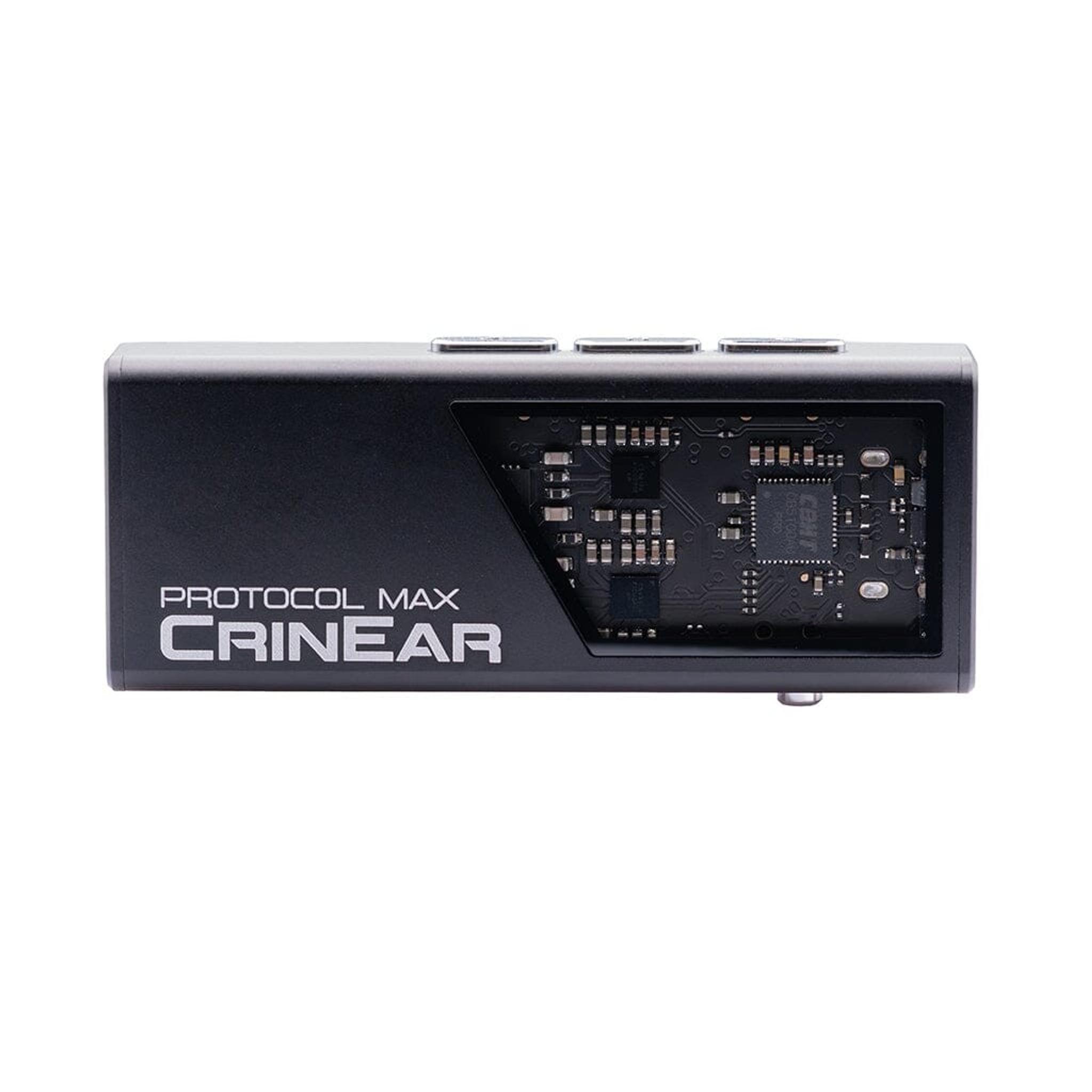

CrinEar Protocol Max — Pocket Power, Unleashed Meet the CrinEar Protocol Max, a portable DAC and headphone amplifier that brings desktop-class performance to your pocket. 99 USD.
Performance That Defies Size Engineered for enthusiasts who demand both muscle and precision, the Protocol Max can drive anything from ultra-sensitive IEMs to full-size planar magnetics without breaking a sweat. Its dual SG Micro SGM8262-2 op-amps deliver up to 600 mW from the balanced output, while the dual DAC architecture ensures a transparent, noise-free signal path.
audio to store custom 10-band EQ profiles directly onto the device. Once saved, your EQ remains persistent across all devices — phones, tablets, laptops, and more.

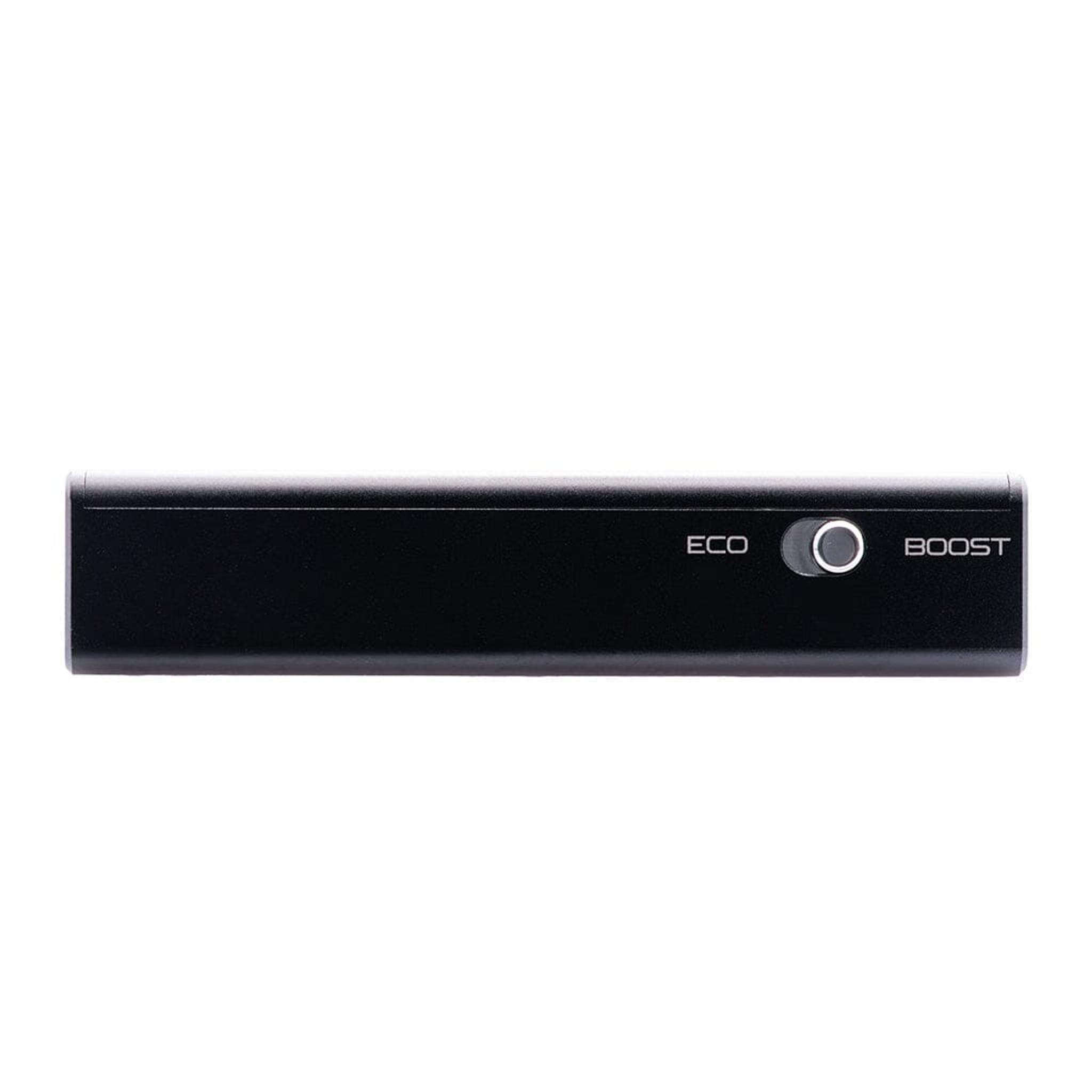

Fine-tune your signature, push to device, and go. Smart Power Modes Switch between Eco Mode for efficient portable listening or Boost Mode for maximum output.
The Protocol Max automatically adapts its amplification and current draw, giving you the ideal balance of power and battery life. 6 Ω, the Protocol Max pairs cleanly with virtually any headphone or IEM.
Whether you’re using a flagship planar or a daily-carry IEM, you’ll get ruler-flat response and precise channel control. Built to Travel Machined from aluminum and finished with a quad-weave cable, the Protocol Max feels as solid as it sounds.
Its thumb-drive form factor slips easily into your pocket — compact enough for everyday carry, powerful enough to replace your desktop amp. 99 Moondrop MoonRiver 2 Ti Dual CS43198 550 mW @ 32 Ω No $189 iBasso DC04 Pro Dual CS43131 280 mW @ 32 Ω Yes (App-based) $119 Fiio KA3 Dual ESS ES9038Q2M 550 mW @ 32 Ω No $129
Compatible With
DAC Chipset
| Specification | Value |
|---|---|
| Specification | Details |

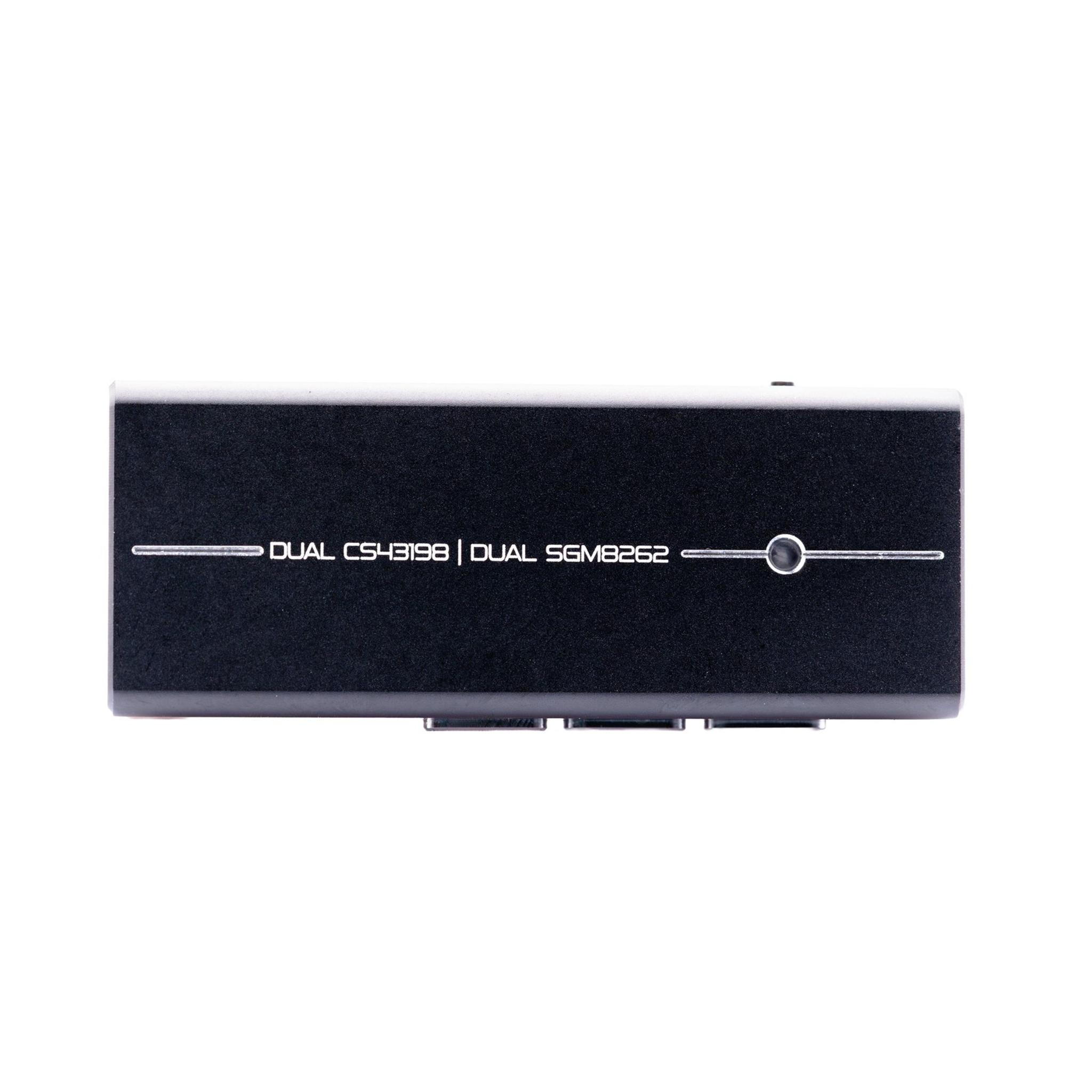

| DAC Chips | Dual Cirrus Logic CS43198 |
| Amplifier Chips | Dual SG Micro SGM8262-2 op-amps |
| Maximum Output (BAL) | 600 mW @ 16 Ω (Boost Mode) |
| Maximum Output (SE) | 500 mW @ 8 Ω (Boost Mode) |
| Signal-to-Noise Ratio @ 1 kHz 0 dBFS | 132 dB (BAL) / 127 dB (SE) |
| THD + N @ 1 kHz 0 dBFS | -118 dB (BAL) / -116 dB (SE) |
| Crosstalk @ 1 kHz -6 dBFS | -116 dB (BAL) / -65 dB (SE) |
| Output Impedance | < 0.6 Ω (BAL) / < 0.3 Ω (SE) |
| Power Modes | Eco / Boost (selectable) |

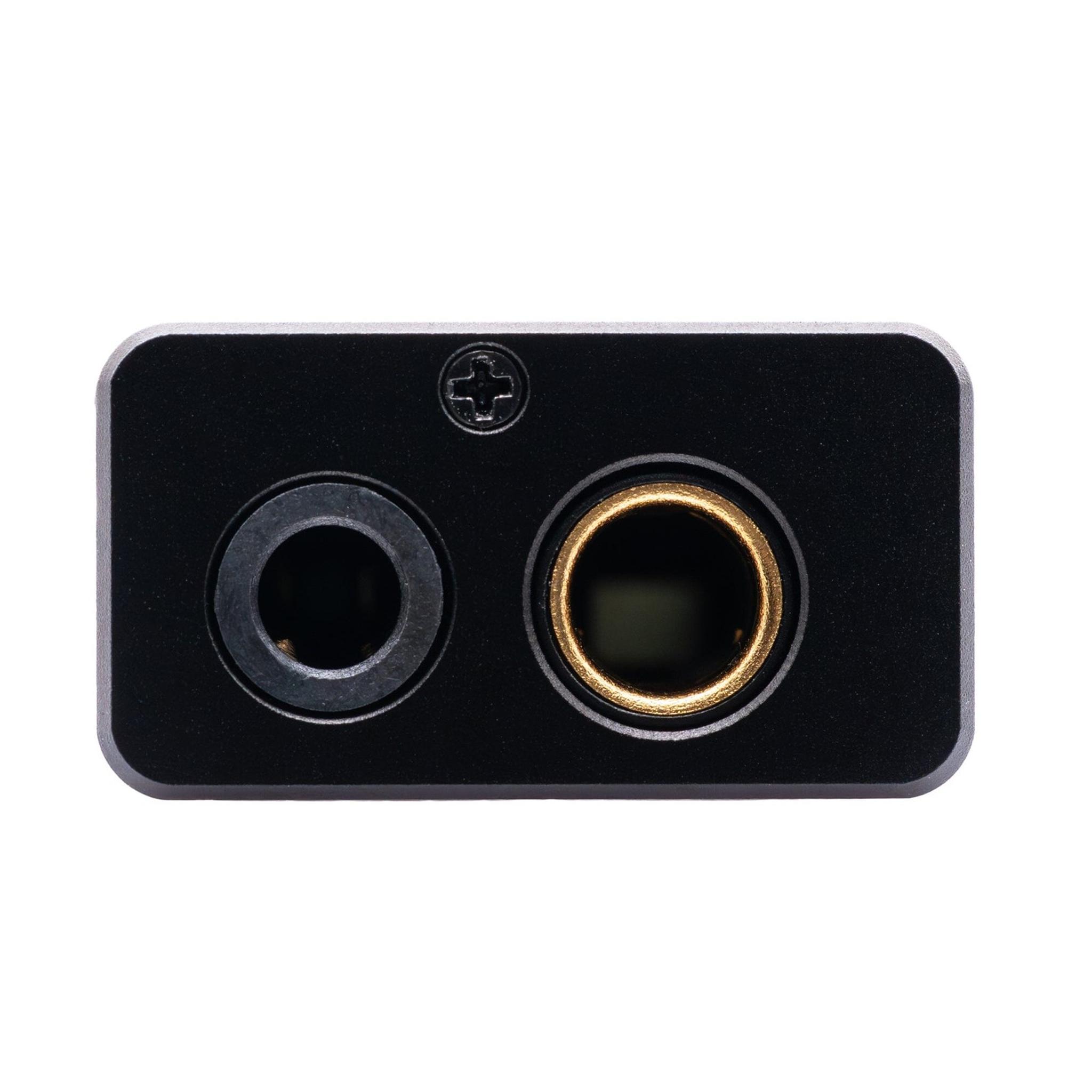

| Outputs | 4.4 mm Balanced & 3.5 mm Single-Ended |
| PEQ Functionality | 10-band PEQ via browser tool (graph.hangout.audio) |

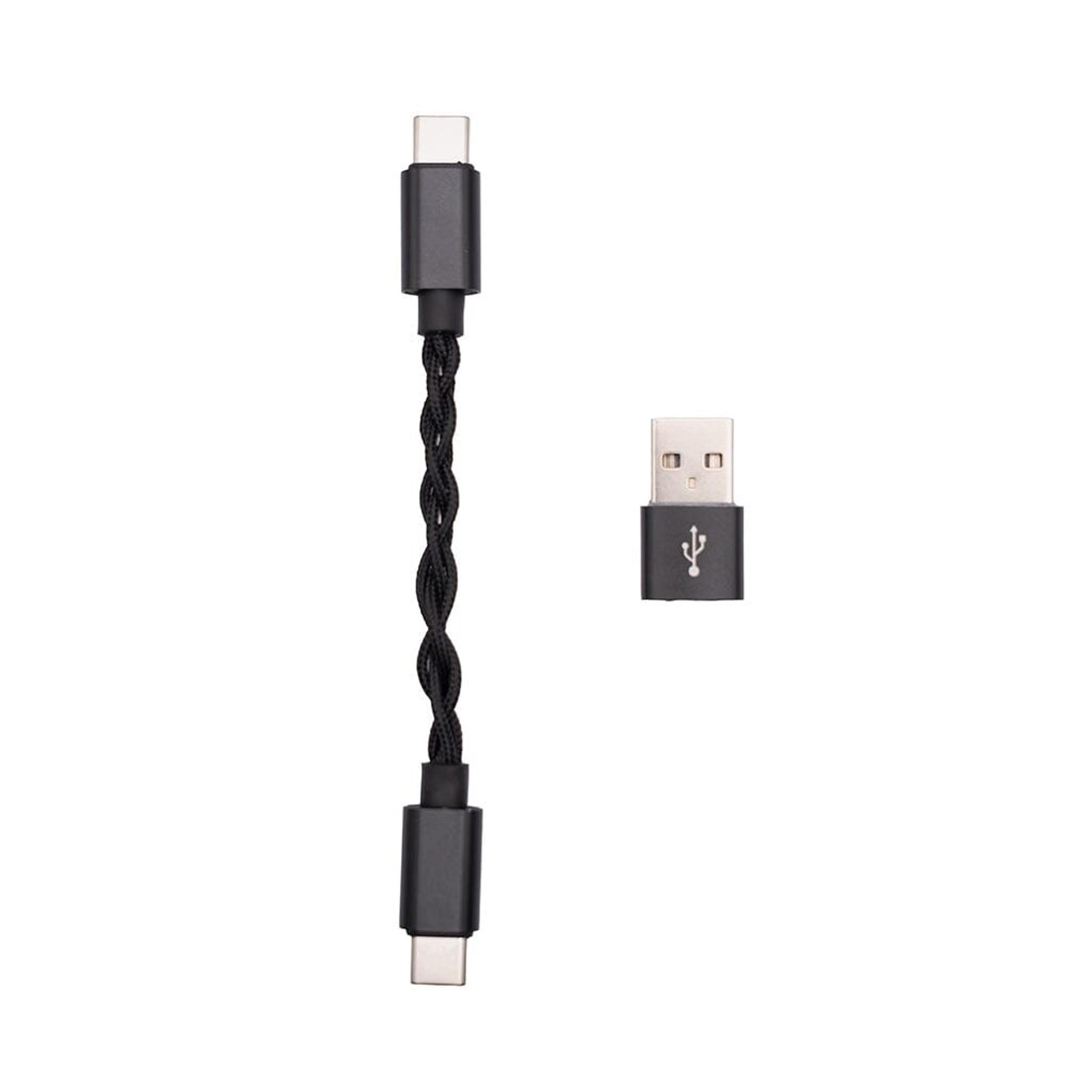

| Construction | Aluminum housing, quad-weave USB-C cable |
| Compatibility | Windows, macOS, Android, Nintendo Switch (UAC 1.0 mode) |
| Price |
| $89.99 USD |
| Model | DAC Chipset |
| CrinEar Protocol Max | Dual Cirrus Logic CS43198 |
| Moondrop MoonRiver 2 Ti | Dual CS43198 |
| iBasso DC04 Pro | Dual CS43131 |
| Fiio KA3 | Dual ESS ES9038Q2M |
