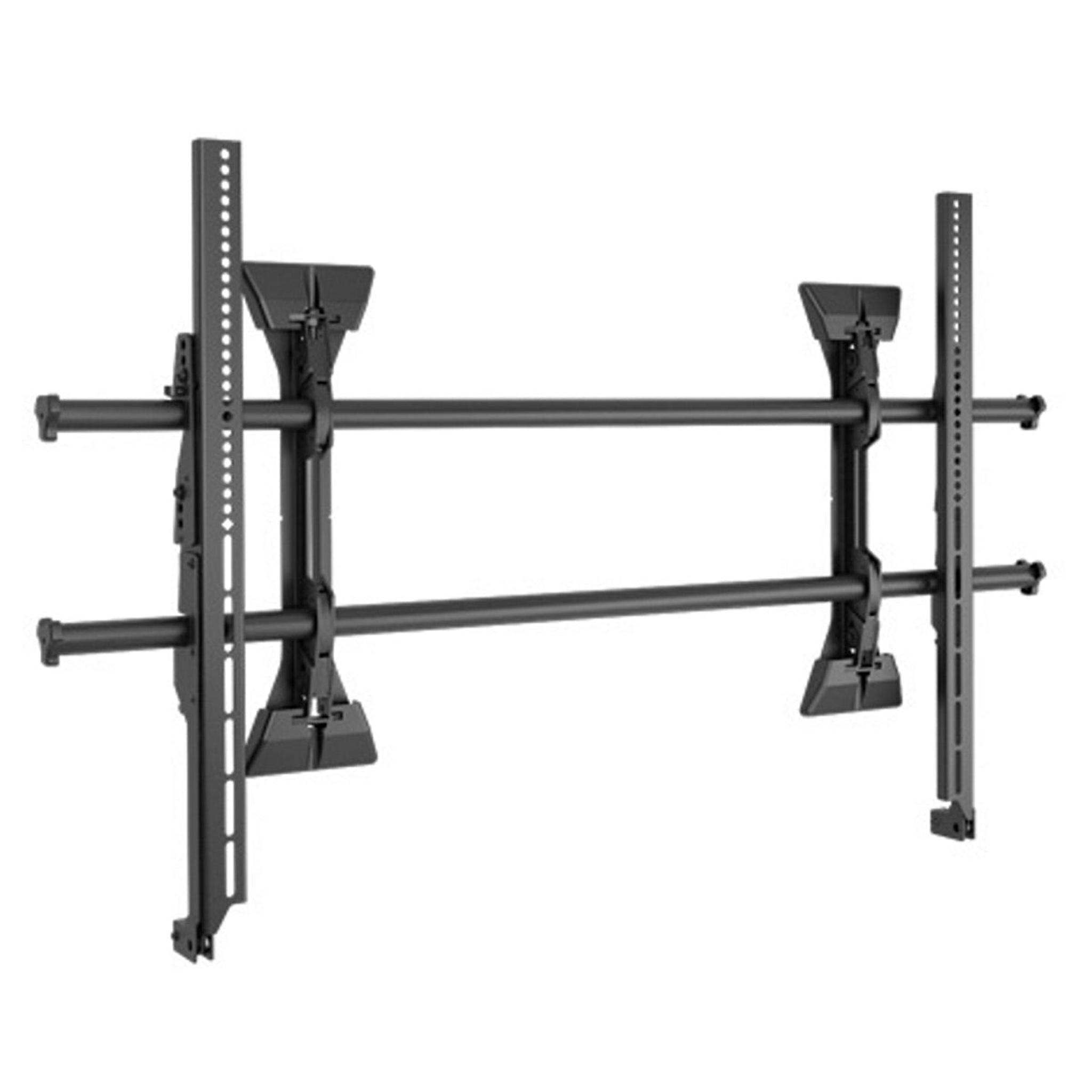

Chief XSM1U Large Fusion Adjustable Fixed TV Mount for 55" - 82"

XSM1U Features:

Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall, ControlZone Leveling for post-installation fine tuning of height and leveling, Centerless Shift provides up to 21.4" (543 mm) of post-installation lateral shift for limitless centering, Set screws keep the mount rigid, stable and secure throughout the life of the installation, ClickConnect offers an audible click when the screen safely engages with the mount, Built-in cable stand provides easy access under the screen, A full line of accessories can be installed with the mount and the entire unit can be adjusted together, Multiple installation options for various stud distances, Exclusive nesting spacers can be stacked to achieve any depth, Quick-Store Cords use magnets to easily store and access pull cords, Improved cable management with new end caps, Integrated Security, Ships with a custom hardware kit that can be hung from mount rails if installing in stages, Easy Open box with less waste to throw away

XSM1U Specifications:

Certifications: UL Listed, Color: Black, Lateral Shift: 21.4" (543 mm), Manual Height Adjustment: 1" (25 mm), Minimum Depth: 2.25" (57 mm), Mounting Pattern Compatibility (Universal Versions): 100 mm x 100 mm - 1070 mm x 600 mm, Orientation: Landscape, Overall Dimensions (H x W x D): 26.26 x 42.75 x 2.25" (667 x 1086 x 57 mm), Solution Type: Universal, Typical Screen Sizes: 55-82", Wall Stud Compatibility (inches): 24-42, Weight Capacity: 250 lbs (114 kg)

Model

XSM1U

UPC

841872163871
