Audio-Technica
In Stock
Domestic Multi-Carrier Shipping · 2-Year Warranty · Expert Support
Feature
Model
AT-LP3XBT-BK
UPC
4961310156770
Feature
Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via included dual RCA output cable
Feature

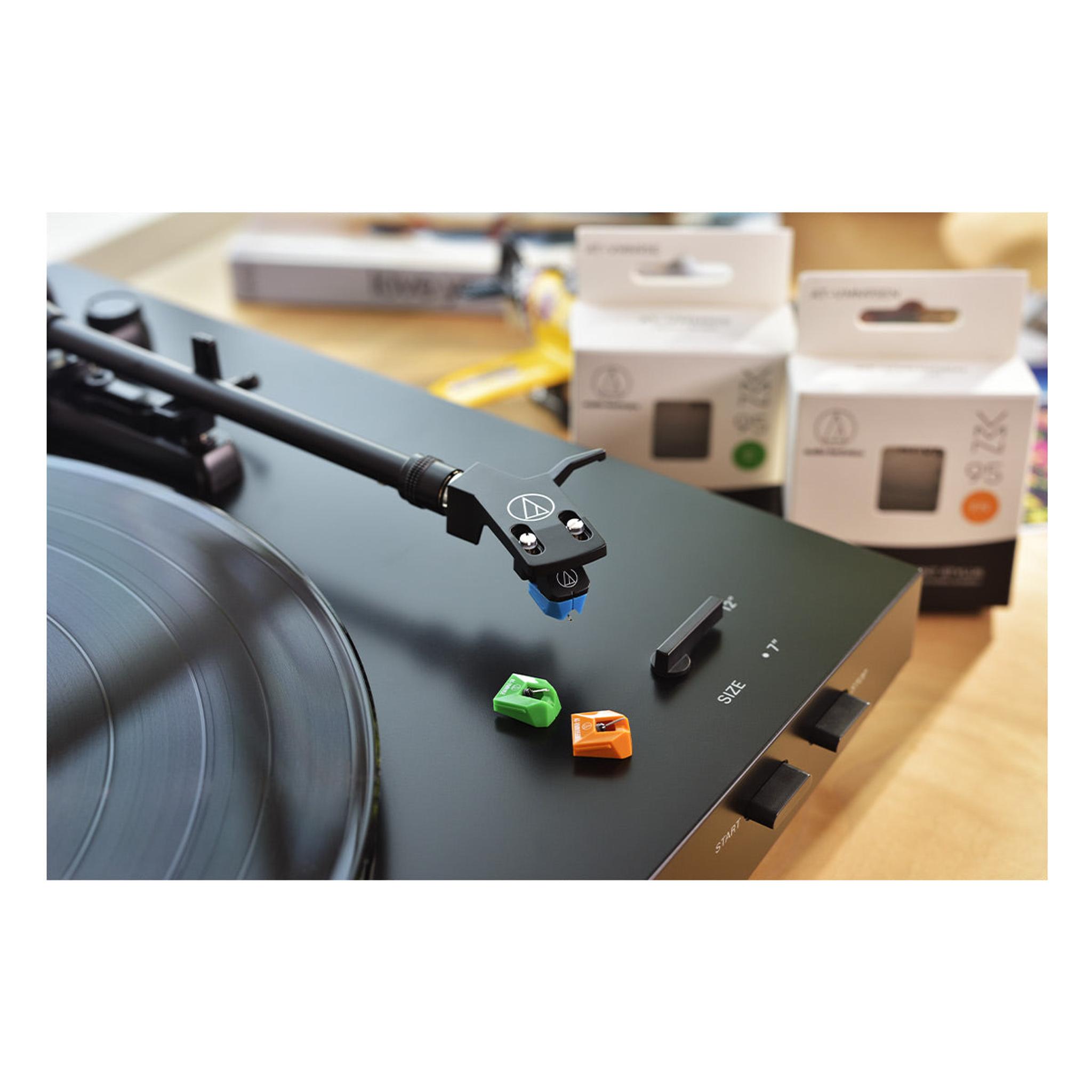

AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
| Specification | Value | Info |
|---|---|---|
| Communication System | Bluetooth version 5.2 | Communication Specifications |
| RF Output | 2.5 mW EIRP | Communication Specifications |
| Maximum Communication Range | Line of sight - approx. 10 m (33') | Communication Specifications |
| Frequency Band | 2.402 GHz to 2.480 GHz | Communication Specifications |
| Modulation Method | GFSK, Pi/4DQPSK, 8DPSK | Communication Specifications |
| Compatible Bluetooth Profiles | A2DP | Communication Specifications |
| Supported Codecs | Qualcomm® aptXTM Adaptive audio, Qualcomm® aptXTM audio, SBC | Communication Specifications |
| Type | Belt-drive, fully automatic operation | Turntable Specifications |
| Motor | DC motor | Turntable Specifications |
| Drive Method | Belt drive | Turntable Specifications |
| Speeds | 33-1/3 RPM, 45 RPM | Turntable Specifications |
| Turntable Platter | Die-cast aluminum | Turntable Specifications |
| Wow and Flutter | < 0.2 % WRMS (33 RPM) at 3 kHz | Turntable Specifications |
| Signal-to-Noise Ratio | > 60 dB | Turntable Specifications |
| PHONO | 4.0 mV nominal at 1 kHz, 5 cm/sec | Turntable Specifications |
| LINE | 252 mV nominal at 1 kHz, 5 cm/sec | Turntable Specifications |
| Type | Static balanced straight tonearm | Tonearm Specifications |
| Effective Length | 8.72" (221.5 mm) | Tonearm Specifications |
| Overhang | 19 mm | Tonearm Specifications |
| Maximum Tracking Error Angle | Less than 3.0° | Tonearm Specifications |
| Stylus Pressure Adjustment Range | 1 to 4 g | Tonearm Specifications |
| Applicable Cartridge Weight Range (including headshell) | 14.5 to 20 g | Tonearm Specifications |
| Cartridge Model | AT-VM95C | Cartridge and Headshell Specifications |
| Cartridge Type | VM | Cartridge and Headshell Specifications |
| Recommended Load Impedance | 47,000 ohms | Cartridge and Headshell Specifications |
| Output Voltage | 4.0 mV (1kHz, 5cm/sec) | Cartridge and Headshell Specifications |
| Stylus | 0.6 mil bonded conical | Cartridge and Headshell Specifications |
| Cantilever | Aluminum pipe | Cartridge and Headshell Specifications |
| Tracking Force Range | 1.8 to 2.2 g (standard 2.0 g) | Cartridge and Headshell Specifications |
| Cartridge Weight | 6.1g (0.22 oz) | Cartridge and Headshell Specifications |
| Headshell Model | AT-HS3BK | Cartridge and Headshell Specifications |
| 11.1 g (including lead wires) | Cartridge and Headshell Specifications |
| 10.3 g (excluding lead wires) | Cartridge and Headshell Specifications |
| Power Supply Requirements | 100-240 V, 50Hz/60Hz, 0.6 A Max. | General Specifications |
| Power Consumption | 2 W | General Specifications |
| AC Adapter | 12 V, 0.5 A | General Specifications |
| Dimensions (W x H x D) | 17" × 5" x 15" | General Specifications |
| Weight | 11 lbs | General Specifications |
| Replacement Stylus (sold separately) | AT-VMN95C | General Specifications |
| Replacement Headshell (sold separately) | AT-HS3BK | General Specifications |
| Replacement Belt (sold separately) | AT-LP3XBT exclusive belt | General Specifications |
